org.universAAL.middleware.ui.impl

Class UIStrategyCaller

java.lang.Object

java.lang.Thread

org.universAAL.middleware.bus.model.BusStrategy

org.universAAL.middleware.ui.impl.generic.EventBasedStrategy

org.universAAL.middleware.ui.impl.generic.CallBasedStrategy

org.universAAL.middleware.ui.impl.generic.CoordinatedStrategy

org.universAAL.middleware.ui.impl.generic.CoordinatedRegistrationManagement

org.universAAL.middleware.ui.impl.UIStrategyCoordinatorMng

org.universAAL.middleware.ui.impl.UIStrategyHandler

org.universAAL.middleware.ui.impl.UIStrategyCaller

All Implemented Interfaces:

Runnable, SharedObjectListener, SpaceListener

public class UIStrategyCaller
extends UIStrategyHandler

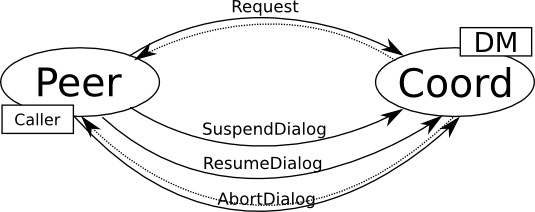

This part of the UIStrategy Stack deals only with communications between the UICallers and the IDialogManager.
the messages exchaged are:

1. Request: the UICaller notifies the IDialogManager there is a new UIRequest it whants to display to a user. When ready a UIResponse will be delivered.
2. suspend a dialog: the UICaller notifies the IDialogManager a dialog should be suspendend for later resume.
3. resume a dialog: a notification for resuming a previously suspended dialog.
4. abort a dialog: a dialog is no longer valid the UICaller calls for its removal, the data inputed until cancelation will be delibered. Aborts may also be instructed by the IDialogManager in representation of the user.

Author:

amedrano

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
class	UIStrategyCaller.UIRequestCall

Nested classes/interfaces inherited from class org.universAAL.middleware.ui.impl.generic.CoordinatedStrategy

CoordinatedStrategy.CoordinatorAlreadyExistsException

Nested classes/interfaces inherited from class java.lang.Thread

Thread.State, Thread.UncaughtExceptionHandler

Field Summary

Fields inherited from class org.universAAL.middleware.ui.impl.UIStrategyHandler

LAST_USED_HANDLER_MATCH_LEVEL_ADDITION, lastUsedHandler, runningDialogs

Fields inherited from class org.universAAL.middleware.ui.impl.UIStrategyCoordinatorMng

dialogManager

Fields inherited from class org.universAAL.middleware.ui.impl.generic.CoordinatedRegistrationManagement

PROP_REGISTRATION, PROP_REGISTRATION_ID

Fields inherited from class org.universAAL.middleware.ui.impl.generic.CoordinatedStrategy

TYPE_UI_BUS_COORDINATOR_BROADCAST, TYPE_UI_BUS_COORDINATOR_REQUEST, TYPE_UI_BUS_COORDINATOR_RESIGN

Fields inherited from class org.universAAL.middleware.bus.model.BusStrategy

bus, busModule, commModule

Fields inherited from class java.lang.Thread

MAX_PRIORITY, MIN_PRIORITY, NORM_PRIORITY

Constructor Summary

Constructors

Constructor and Description
UIStrategyCaller(CommunicationModule commModule)
UIStrategyCaller(CommunicationModule commModule, String name)

Method Summary

Modifier and Type	Method and Description
void	abortAllPendingRequestsFor(UICaller caller) A caller is unregistering, and it will be no more reachable, all of its pending requests must be aborted.
void	close()
protected void	lostCoordinator() Peer will notify that communication channel is broken and then notify an abort on all pending requests, for all local UICallers
protected void	notifyCallerDialogSubmitted(UIResponse response)
void	peerLost(PeerCard peer) Coordinator will abort all pending request of the lost peer
void	start()

Methods inherited from class org.universAAL.middleware.ui.impl.UIStrategyHandler

cutDialog

Methods inherited from class org.universAAL.middleware.ui.impl.generic.CoordinatedRegistrationManagement

addRegistration, getRegistryID, isIdRegistered, registryIdIterator, registryIterator, removeAllRegistries, removeMatchingRegistries

Methods inherited from class org.universAAL.middleware.ui.impl.generic.CoordinatedStrategy

getCoordinator, iAmCoordinator, peerJoined, requestBecomeACoordinator, resignFromCoordinator, sharedObjectAdded, sharedObjectRemoved, spaceJoined, spaceLost, spaceStatusChanged

Methods inherited from class org.universAAL.middleware.ui.impl.generic.CallBasedStrategy

abortAll, abortCall, handle, placeAsynchronousRequest, placeAsynchronousRequest, placeSynchronousRequest, placeSynchronousRequest, sendAsynchronousResponse, sendAsynchronousResponse, sendSynchronousResponse

Methods inherited from class org.universAAL.middleware.ui.impl.generic.EventBasedStrategy

sendEventToRemoteBusMember, sendEventToRemoteBusMember, sendEventToRemoteBusMember, sendEventToRemoteBusMember, sendEventToRemoteBusMember

Methods inherited from class org.universAAL.middleware.bus.model.BusStrategy

buildChannelMessage, getBusMember, getLocalBusByName, handleMessage, run, send, setBus, stopThread

Methods inherited from class java.lang.Thread

activeCount, checkAccess, clone, countStackFrames, currentThread, destroy, dumpStack, enumerate, getAllStackTraces, getContextClassLoader, getDefaultUncaughtExceptionHandler, getId, getName, getPriority, getStackTrace, getState, getThreadGroup, getUncaughtExceptionHandler, holdsLock, interrupt, interrupted, isAlive, isDaemon, isInterrupted, join, join, join, resume, setContextClassLoader, setDaemon, setDefaultUncaughtExceptionHandler, setName, setPriority, setUncaughtExceptionHandler, sleep, sleep, stop, stop, suspend, toString, yield

Methods inherited from class java.lang.Object

equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Constructor Detail

UIStrategyCaller

public UIStrategyCaller(CommunicationModule commModule,
                        String name)

Parameters:

commModule -

name -

UIStrategyCaller

public UIStrategyCaller(CommunicationModule commModule)

Parameters:

commModule -

Method Detail

start

public void start()

Overrides:

start in class UIStrategyHandler

notifyCallerDialogSubmitted

protected void notifyCallerDialogSubmitted(UIResponse response)

Specified by:

notifyCallerDialogSubmitted in class UIStrategyHandler

close

public void close()

Overrides:

close in class UIStrategyHandler

abortAllPendingRequestsFor

public void abortAllPendingRequestsFor(UICaller caller)

A caller is unregistering, and it will be no more reachable, all of its pending requests must be aborted.

Parameters:

caller -

peerLost

public void peerLost(PeerCard peer)

Coordinator will abort all pending request of the lost peer

Specified by:

peerLost in interface SpaceListener

Overrides:

peerLost in class UIStrategyHandler

lostCoordinator

protected void lostCoordinator()

Peer will notify that communication channel is broken and then notify an abort on all pending requests, for all local UICallers

Overrides:

lostCoordinator in class UIStrategyHandler
