org.universAAL.middleware.modules

Interface CommunicationModule

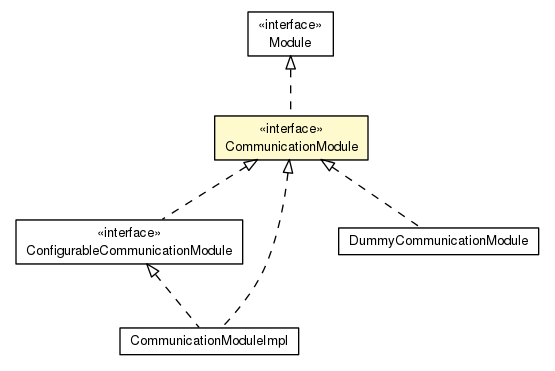

All Superinterfaces:

Module

All Known Subinterfaces:

ConfigurableCommunicationModule

All Known Implementing Classes:

CommunicationModuleImpl, DummyCommunicationModule

public interface CommunicationModule
extends Module

The interface for the Communication Module. This interface is invoked from the brokerage layer

Author:

Michele Girolami, Francesco Furfari

Method Summary

Modifier and Type	Method and Description
void	addMessageListener(MessageListener listener, String channelName) Method used by the brokerage layer to add message listener
MessageListener	getListenerByNameAndType(String name, Class clz) Returns the first MessageListener that is an instance of the given clz and has been registered under the given name.
boolean	hasChannel(String channelName) Determines whether a channel with the specified name exists.
void	messageReceived(ChannelMessage channelMessage) This method is invoked by the Connector layer as soon as a message arrives.
void	removeMessageListener(MessageListener listener, String channelName) Method used by the upper layer to un-register themselves as message listener
void	send(ChannelMessage message, MessageListener listener, PeerCard receiver) Unicast send
void	send(ChannelMessage message, PeerCard receiver) Unicast send to the Space Coordinator for joining operation
void	sendAll(ChannelMessage message) Broadcast implementation of the send
void	sendAll(ChannelMessage message, List<PeerCard> receivers) Multicast implementation of the send.
void	sendAll(ChannelMessage message, List<PeerCard> receivers, MessageListener listener) Multicast send
void	sendAll(ChannelMessage message, MessageListener listener) Broadcast implementation of the send

Methods inherited from interface org.universAAL.middleware.modules.Module

dispose, getDescription, getName, getProvider, getVersion, init, loadConfigurations

Method Detail

messageReceived

void messageReceived(ChannelMessage channelMessage)

This method is invoked by the Connector layer as soon as a message arrives.

Parameters:

channelMessage -

sendAll

void sendAll(ChannelMessage message,
             List<PeerCard> receivers,
             MessageListener listener)
      throws CommunicationModuleException

Multicast send

Parameters:

message - Message to send

receivers - A list of receivers

listener - The listener manages failures during the message send

Throws:

CommunicationModuleException

sendAll

void sendAll(ChannelMessage message,
             List<PeerCard> receivers)
      throws CommunicationModuleException

Multicast implementation of the send. This signature does not require any MessageListener

Parameters:

message -

receivers -

Throws:

CommunicationModuleException

sendAll

void sendAll(ChannelMessage message,
             MessageListener listener)
      throws CommunicationModuleException

Broadcast implementation of the send

Parameters:

message -

listener - The listener that will manage failures during the message send

Throws:

CommunicationModuleException

sendAll

void sendAll(ChannelMessage message)
      throws CommunicationModuleException

Broadcast implementation of the send

Parameters:

message -

Throws:

CommunicationModuleException

send

void send(ChannelMessage message,
          MessageListener listener,
          PeerCard receiver)
   throws CommunicationModuleException

Unicast send

Parameters:

message -

recipient -

listener - that will manage message failures

Throws:

CommunicationModuleException

send

void send(ChannelMessage message,
          PeerCard receiver)
   throws CommunicationModuleException

Unicast send to the Space Coordinator for joining operation

Parameters:

message -

coordinatorID -

listener -

Throws:

CommunicationModuleException

addMessageListener

void addMessageListener(MessageListener listener,
                        String channelName)

Method used by the brokerage layer to add message listener

Parameters:

listener -

ChannelMessage -

removeMessageListener

void removeMessageListener(MessageListener listener,
                           String channelName)

Method used by the upper layer to un-register themselves as message listener

Parameters:

listener -

ChannelMessage -

getListenerByNameAndType

MessageListener getListenerByNameAndType(String name,
                                         Class clz)

Returns the first MessageListener that is an instance of the given clz and has been registered under the given name.

Parameters:

name -

Returns:

hasChannel

boolean hasChannel(String channelName)

Determines whether a channel with the specified name exists.

Parameters:

channelName - name of the channel.

Returns:

true, iff the channel exists.
