org.universAAL.middleware.ui

Class UICaller

java.lang.Object

org.universAAL.middleware.bus.member.BusMember

org.universAAL.middleware.bus.member.Caller

org.universAAL.middleware.ui.UICaller

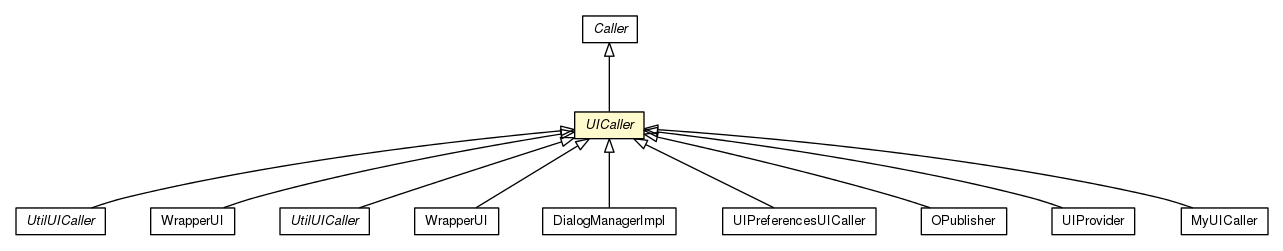

Direct Known Subclasses:

DialogManagerImpl, MyUICaller, OPublisher, UIPreferencesUICaller, UIProvider, UtilUICaller, UtilUICaller, WrapperUI, WrapperUI

public abstract class UICaller
extends Caller

Provides the interface to be implemented by applications together with shared code. Only instances of this class can send UIRequests. The convention of the IUIBus regarding the registration parameters is the following:

• UICallers provide no registration parameters
• UIHandlers may pass an array of UIHandlerProfiles as their initial subscriptions and can always add new (and remove old) subscriptions dynamically.

Author:

mtazari, eandgrg

Field Summary

Fields inherited from class org.universAAL.middleware.bus.member.BusMember

busResourceURI, owner, theBus

Constructor Summary

Constructors

Modifier	Constructor and Description
protected	UICaller(ModuleContext context) Instantiates a new UICaller.

Method Summary

Modifier and Type	Method and Description
void	abortDialog(String dialogID) Abort dialog.
void	adaptationParametersChanged(UIRequest call, String changedProp) Adaptation parameters changed.
void	busDyingOut(AbstractBus bus) This method is called when the bus is stopped to announce this to the bus members.
abstract void	communicationChannelBroken() Method to be called when the communication of the UICaller with the IDialogManager is lost.
abstract void	dialogAborted(String dialogID, Resource data) Dialog aborted.
void	dialogSuspended(String dialogID) Dialog suspended.
String	getMyID() Id with which the UICaller is registered in the IUIBus
void	handleReply(BusMessage msg) Handle reply.
abstract void	handleUIResponse(UIResponse uiResponse) Handle UIResponse - that comes from UIHandler carrying user input.
void	resumeDialog(String dialogID, Resource dialogData) Resume dialog.
void	sendUIRequest(UIRequest uiRequest) Sends UIRequest.

Methods inherited from class org.universAAL.middleware.bus.member.BusMember

close, getComment, getLabel, getType, getURI, setComment, setLabel

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

UICaller

protected UICaller(ModuleContext context)

Instantiates a new UICaller.

Parameters:

context - the module context

Method Detail

abortDialog

public void abortDialog(String dialogID)

Abort dialog.

Parameters:

dialogID - the dialog id

adaptationParametersChanged

public final void adaptationParametersChanged(UIRequest call,
                                              String changedProp)

Adaptation parameters changed.

Parameters:

call - the UIRequest

changedProp - the changed prop

busDyingOut

public final void busDyingOut(AbstractBus bus)

Description copied from class: BusMember

This method is called when the bus is stopped to announce this to the bus members.

Specified by:

busDyingOut in class BusMember

Parameters:

bus - bus on which this member has been registered

See Also:

BusMember.busDyingOut(AbstractBus)

communicationChannelBroken

public abstract void communicationChannelBroken()

Method to be called when the communication of the UICaller with the IDialogManager is lost. Any pending request might be resend at this point. All affected pending dialogs will be aborted right after this call (with null data).

dialogAborted

public abstract void dialogAborted(String dialogID,
                                   Resource data)

Dialog aborted.

Parameters:

dialogID - the dialog id

data - the data collected up until abortion, it might be null if the data could not be retrieved.

dialogSuspended

public final void dialogSuspended(String dialogID)

Dialog suspended.

Parameters:

dialogID - the dialog id

handleReply

public final void handleReply(BusMessage msg)

Handle reply.

Parameters:

msg - the BusMessage

handleUIResponse

public abstract void handleUIResponse(UIResponse uiResponse)

Handle UIResponse - that comes from UIHandler carrying user input.

Parameters:

uiResponse - the UIResponse

resumeDialog

public void resumeDialog(String dialogID,
                         Resource dialogData)

Resume dialog.

Parameters:

dialogID - the dialog id

dialogData - the dialog data

sendUIRequest

public final void sendUIRequest(UIRequest uiRequest)

Sends UIRequest.

Parameters:

uiRequest - the UIRequest

Throws:

NullPointerException - if the ui request is null

getMyID

public String getMyID()

Id with which the UICaller is registered in the IUIBus

Returns:

UICaller ID
