org.universAAL.middleware.bus.model

Class AbstractBus

java.lang.Object

org.universAAL.middleware.bus.model.AbstractBus

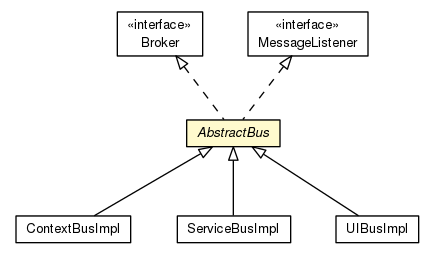

All Implemented Interfaces:

Broker, MessageListener

Direct Known Subclasses:

ContextBusImpl, ServiceBusImpl, UIBusImpl

public abstract class AbstractBus
extends Object
implements Broker, MessageListener

Defines a shared mechanisms realized by all concrete buses. This mainly means that it offers abstract view on the bus strategy and manages the bus message queue and by that reduces the implementation of the concrete bus strategy.

Author:

mtazari - Saied Tazari

Field Summary

Fields

Modifier and Type	Field and Description
protected BusStrategy	busStrategy
protected static CommunicationModule	communicationModule
protected ModuleContext	context
static String	OPTIONAL_URI_PREFIX Additional prefix for SPACE_INSTANCE_URI_PREFIX and MW_INSTANCE_URI_PREFIX to make it start with a valid URI scheme.
protected IRegistry	registry
protected static SpaceManager	spaceManager

Constructor Summary

Constructors

Modifier	Constructor and Description
protected	AbstractBus(ModuleContext module, String brokerName)

Method Summary

Modifier and Type	Method and Description
boolean	addRegistryListener(IRegistryListener listener)
void	brokerMessage(String senderID, BusMessage msg) Calls message handling in BusStrategy (gives sender ID and message to process on the bus).
String	createBusSpecificID(String module, String type)
protected abstract BusStrategy	createBusStrategy(CommunicationModule commModule)
protected IRegistry	createRegistry()
void	dispose() Stops the bus (deletes all bus members from the list, stops BusStrategy thread and announces that the bus is being stopped to its members).
String	getBrokerName()
BusMember	getBusMember(String memberID) Returns bus member instance based on its member ID.
String	getBusMemberID(BusMember bm) If the passed argument is indeed a registered member of this bus, returns the local ID with which it has been registered with the bus, otherwise null.
BusMember[]	getBusMembers()
String[]	getBusMembersByID()
static int	getCurrentNumberOfPeers()
PeerCard	getPeerCard()
static PeerCard	getPeerFromBusResourceURI(String uri)
String	getURI()
boolean	init()
static void	initBrokerage(ModuleContext mc, SpaceManager spaceMgr, CommunicationModule commModule)
boolean	isBusResourceURI(String uri)
boolean	isValidMember(String memberURI)
void	messageReceived(ChannelMessage message) Callback for the reception of messages
String	register(ModuleContext module, BusMember m, BusMemberType type) Registers a new bus member (adds a bus member to the list of all bus members but only if it has not been added before).
boolean	removeRegistryListener(IRegistryListener listener)
BrokerMessage	unmarshall(String serializedBusMessage) From String to Broker Message
void	unregister(String memberID, BusMember m) Unregisters bus member from the bus (if the bus member with given ID exists).

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.universAAL.middleware.modules.listener.MessageListener

handleSendError

Field Detail

OPTIONAL_URI_PREFIX

public static final String OPTIONAL_URI_PREFIX

Additional prefix for SPACE_INSTANCE_URI_PREFIX and MW_INSTANCE_URI_PREFIX to make it start with a valid URI scheme.

For example, this prefix could be urn:space:

See Also:

Constant Field Values

spaceManager

protected static SpaceManager spaceManager

communicationModule

protected static CommunicationModule communicationModule

context

protected ModuleContext context

registry

protected IRegistry registry

busStrategy

protected BusStrategy busStrategy

Constructor Detail

AbstractBus

protected AbstractBus(ModuleContext module,
                      String brokerName)

Method Detail

initBrokerage

public static void initBrokerage(ModuleContext mc,
                                 SpaceManager spaceMgr,
                                 CommunicationModule commModule)

getCurrentNumberOfPeers

public static int getCurrentNumberOfPeers()

getPeerFromBusResourceURI

public static PeerCard getPeerFromBusResourceURI(String uri)

createRegistry

protected IRegistry createRegistry()

createBusStrategy

protected abstract BusStrategy createBusStrategy(CommunicationModule commModule)

getBusMember

public BusMember getBusMember(String memberID)

Returns bus member instance based on its member ID.

Parameters:

memberID - bus member ID

Returns:

bus member instance

getBusMemberID

public String getBusMemberID(BusMember bm)

If the passed argument is indeed a registered member of this bus, returns the local ID with which it has been registered with the bus, otherwise null.

getPeerCard

public PeerCard getPeerCard()

getBusMembers

public BusMember[] getBusMembers()

Returns:

all bus members in BusMember array

getBusMembersByID

public String[] getBusMembersByID()

Returns:

IDs of all bus members in array

register

public final String register(ModuleContext module,
                             BusMember m,
                             BusMemberType type)

Registers a new bus member (adds a bus member to the list of all bus members but only if it has not been added before). Returns the URI with which the provided member will be known as a bus resource.

brokerMessage

public void brokerMessage(String senderID,
                          BusMessage msg)

Calls message handling in BusStrategy (gives sender ID and message to process on the bus).

init

public boolean init()

Specified by:

init in interface Broker

dispose

public void dispose()

Stops the bus (deletes all bus members from the list, stops BusStrategy thread and announces that the bus is being stopped to its members).

Specified by:

dispose in interface Broker

unregister

public void unregister(String memberID,
                       BusMember m)

Unregisters bus member from the bus (if the bus member with given ID exists).

messageReceived

public void messageReceived(ChannelMessage message)

Description copied from interface: MessageListener

Callback for the reception of messages

Specified by:

messageReceived in interface MessageListener

getBrokerName

public String getBrokerName()

Specified by:

getBrokerName in interface Broker

getURI

public String getURI()

createBusSpecificID

public final String createBusSpecificID(String module,
                                        String type)

isValidMember

public boolean isValidMember(String memberURI)

isBusResourceURI

public boolean isBusResourceURI(String uri)

unmarshall

public BrokerMessage unmarshall(String serializedBusMessage)

Description copied from interface: Broker

From String to Broker Message

Specified by:

unmarshall in interface Broker

Returns:

addRegistryListener

public boolean addRegistryListener(IRegistryListener listener)

removeRegistryListener

public boolean removeRegistryListener(IRegistryListener listener)
