org.universAAL.middleware.managers.api

Interface SpaceManager

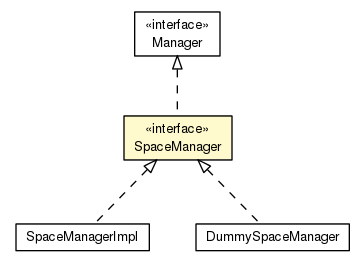

All Superinterfaces:

Manager

All Known Implementing Classes:

DummySpaceManager, SpaceManagerImpl

public interface SpaceManager
extends Manager

Space manager interface. These methods are managing an Space

Author:

Michele Girolami, Stefano "Kismet" Lenzi

Field Summary

Fields

Modifier and Type	Field and Description
static String	COMUNICATION_TIMEOUT_KEY
static String	COMUNICATION_TIMEOUT_VALUE
static PeerRole	DEFAULT_PEER_ROLE
static String	PEER_ID_FILE

Method Summary

Modifier and Type	Method and Description
void	addSpaceListener(SpaceListener listener) Add a new Space listener.
Map<String,SpaceDescriptor>	getManagedSpaces() This method return a map of Space managed by this MW instance
MatchingResult	getMatchingPeers(Map<String,Serializable> filter) A method for identifying a possible set of Peer in the space that can be used for installing a part of the universAAL application. The matching algorithm returns only the Peer of the space that match the following rules For each key of the Map with null value, an attribute with any value must be available on the matching Peer For each key of the Map with a not null value, an attribute with same value must be available on the matching Peer.
PeerCard	getMyPeerCard() This method returns the PeerCard of the current MW instance
Map<String,Serializable>	getPeerAttributes(List<String> attributes, PeerCard target)
Map<String,PeerCard>	getPeers() This method return the list of neighborhood peers joined to the current Space. NOTE: The list does not contains the invoker
SpaceDescriptor	getSpaceDescriptor() This method returns the SpaceDescriptor of the Space where the MW belongs to or null if the mw instance does not join to any Space.
Set<SpaceCard>	getSpaces() This method returns the list of Space discovered
void	join(SpaceCard spaceCard) method to join an existing Space according the configuration file: -to configure the peering channel -to send a join request -to receive the join response -to get the SpaceDescriptor -to configure the communication channels
void	leaveSpace(SpaceDescriptor spaceDescriptor) Method used to leave an Space
void	removeSpaceListener(SpaceListener listener) Remove a Space Listener

Methods inherited from interface org.universAAL.middleware.managers.api.Manager

dispose, init, loadConfigurations

Field Detail

COMUNICATION_TIMEOUT_KEY

static final String COMUNICATION_TIMEOUT_KEY

See Also:

Constant Field Values

COMUNICATION_TIMEOUT_VALUE

static final String COMUNICATION_TIMEOUT_VALUE

See Also:

Constant Field Values

DEFAULT_PEER_ROLE

static final PeerRole DEFAULT_PEER_ROLE

PEER_ID_FILE

static final String PEER_ID_FILE

See Also:

Constant Field Values

Method Detail

getMyPeerCard

PeerCard getMyPeerCard()

This method returns the PeerCard of the current MW instance

Returns:

PeerCard

getSpaces

Set<SpaceCard> getSpaces()

This method returns the list of Space discovered

Returns:

Set of Space found

getSpaceDescriptor

SpaceDescriptor getSpaceDescriptor()

This method returns the SpaceDescriptor of the Space where the MW belongs to or null if the mw instance does not join to any Space.

Returns:

SpaceDescriptor

getManagedSpaces

Map<String,SpaceDescriptor> getManagedSpaces()

This method return a map of Space managed by this MW instance

Returns:

join

void join(SpaceCard spaceCard)

method to join an existing Space according the configuration file: -to configure the peering channel -to send a join request -to receive the join response -to get the SpaceDescriptor -to configure the communication channels

Parameters:

space - Space to join

leaveSpace

void leaveSpace(SpaceDescriptor spaceDescriptor)

Method used to leave an Space

Parameters:

spaceDescriptor -

getPeers

Map<String,PeerCard> getPeers()

This method return the list of neighborhood peers joined to the current Space.
NOTE: The list does not contains the invoker

Returns:

Map of peers: peerID, PeerCard

getMatchingPeers

MatchingResult getMatchingPeers(Map<String,Serializable> filter)

A method for identifying a possible set of Peer in the space that can be used for installing a part of the universAAL application.
The matching algorithm returns only the Peer of the space that match the following rules

• For each key of the Map with null value, an attribute with any value must be available on the matching Peer
• For each key of the Map with a not null value, an attribute with same value must be available on the matching Peer. The #equals(Object) is used for checking if the value are the same
Please consider the following example:

• The space contains four peer: A, B, C, D, and E
• The attributes of the peer A are { container=Foo, tool=OSGi, version=3.0 }
• The attributes of the peer B are { container=Karaf, tool=Bar, version=1.0 }
• The attributes of the peer C are { container=Karaf, tool=OSGi, version=3.0 }
• The attributes of the peer D are { container=Karaf, tool=OSGi }
• The attributes of the peer E are { container=Karaf, tool=OSGi, version=2.5 }
• The Map filter is set to { container=Karaf, tool=OSGI, version=null }
The MatchingResult will contain the peers C and E, while the other were discarded because
• peer A is skipped because container=Foo, but container=Karaf was searched
• peer B is skipped because tool=Bar, but tool=OSGi was searched
• peer D is skipped because the attribute version is missing

Parameters:

filter - a Map that contains a pair of String as Key and Object as value which will be used for looking for matching among the one available on the space

Returns:

MatchingResult representing the filtering result

Since:

1.3.2

getPeerAttributes

Map<String,Serializable> getPeerAttributes(List<String> attributes,
                                           PeerCard target)

Parameters:

attributes - The list of attribute to get value,

target - PeerCard the peer card that identifies the peer that we want to read attribute from

Returns:

a Map with the pair String, Serializable representing the attribute requested along with its value.

addSpaceListener

void addSpaceListener(SpaceListener listener)

Add a new Space listener.

Parameters:

listener -

removeSpaceListener

void removeSpaceListener(SpaceListener listener)

Remove a Space Listener

Parameters:

listener -
