IKnxDpt5 (universAAL Super POM 3.4.2-SNAPSHOT API)

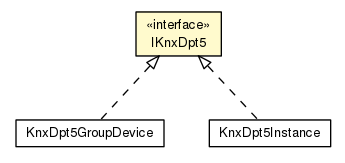

All Known Implementing Classes:

KnxDpt5GroupDevice, KnxDpt5Instance
```
public interface IKnxDpt5
```
Base GroupDeviceCategory for KNX datapoint type U8 (8-Bit Unsigned Value). Possible values are from 0 - 255. In general GroupDeviceCategories specify: - rules and interfaces needed for the communication between OSGi groupDevice service and driver service. Both of them (groupDevice and driver) implement this IF. - a set of service registration properties, their data types and semantics (mandatory or optional) - a range of match values

Author:

Thomas Fuxreiter (foex@gmx.at)

Field Summary

Fields
Modifier and Type	Field and Description
`static String`	`CLASS`
`static byte`	`DEFAULT_MAX_VALUE`
`static byte`	`DEFAULT_MIN_VALUE`
`static String`	`MANUFACTURER`
`static int`	`MATCH_CLASS`
`static int`	`MATCH_MAKE`
`static int`	`MATCH_MODEL`
`static int`	`MATCH_SERIAL`
`static int`	`MATCH_VERSION`
`static String`	`MODEL`
`static KnxGroupDeviceCategoryUtil.KnxGroupDeviceCategory`	`MY_DEVICE_CATEGORY`
`static float`	`RESOLUTION_5_001` 5.001 - DPT_Scaling From 0 - 100% - This gives a resolution of about 0,4% (100 / 256 = 0,390625) 80h = 50%; FFh = 100%
`static float`	`RESOLUTION_5_003` 5.003 - DPT_Angle From 0 - 360°- This gives a resolution of about 1,4° (360 / 256 = 1,40625)
`static float`	`RESOLUTION_5_004` 5.004 - DPT_Percent_U8 From 0 - 255% !! - Resolution is 1 32h = 50%; 64h = 100%; FFh = 255%
`static float`	`RESOLUTION_5_010` 5.010 - DPT_Value_1_Ucount From 0 - 255 - Resolution is 1 //64h = 100 counter pulses; FFh = 255 counter pulses
`static String`	`REVISION`
`static String`	`SERIAL`

- Field Detail
  - MY_DEVICE_CATEGORY
```
static final KnxGroupDeviceCategoryUtil.KnxGroupDeviceCategory MY_DEVICE_CATEGORY
```
  - MATCH_SERIAL
```
static final int MATCH_SERIAL
```
    See Also:

    Constant Field Values
  - MATCH_VERSION
```
static final int MATCH_VERSION
```
    See Also:

    Constant Field Values
  - MATCH_MODEL
```
static final int MATCH_MODEL
```
    See Also:

    Constant Field Values
  - MATCH_MAKE
```
static final int MATCH_MAKE
```
    See Also:

    Constant Field Values
  - MATCH_CLASS
```
static final int MATCH_CLASS
```
    See Also:

    Constant Field Values
  - CLASS
```
static final String CLASS
```
    See Also:

    Constant Field Values
  - MODEL
```
static final String MODEL
```
    See Also:

    Constant Field Values
  - MANUFACTURER
```
static final String MANUFACTURER
```
    See Also:

    Constant Field Values
  - REVISION
```
static final String REVISION
```
    See Also:

    Constant Field Values
  - SERIAL
```
static final String SERIAL
```
    See Also:

    Constant Field Values
  - DEFAULT_MAX_VALUE
```
static final byte DEFAULT_MAX_VALUE
```
    See Also:

    Constant Field Values
  - DEFAULT_MIN_VALUE
```
static final byte DEFAULT_MIN_VALUE
```
    See Also:

    Constant Field Values
  - RESOLUTION_5_001
```
static final float RESOLUTION_5_001
```
    5.001 - DPT_Scaling From 0 - 100% - This gives a resolution of about 0,4% (100 / 256 = 0,390625) 80h = 50%; FFh = 100%

    See Also:

    Constant Field Values
  - RESOLUTION_5_003
```
static final float RESOLUTION_5_003
```
    5.003 - DPT_Angle From 0 - 360°- This gives a resolution of about 1,4° (360 / 256 = 1,40625)

    See Also:

    Constant Field Values
  - RESOLUTION_5_004
```
static final float RESOLUTION_5_004
```
    5.004 - DPT_Percent_U8 From 0 - 255% !! - Resolution is 1 32h = 50%; 64h = 100%; FFh = 255%

    See Also:

    Constant Field Values
  - RESOLUTION_5_010
```
static final float RESOLUTION_5_010
```
    5.010 - DPT_Value_1_Ucount From 0 - 255 - Resolution is 1 //64h = 100 counter pulses; FFh = 255 counter pulses

    See Also:

    Constant Field Values
