org.universAAL.lddi.knx.driver

Class KnxDpt5Instance

java.lang.Object

org.universAAL.lddi.knx.interfaces.KnxDriver

org.universAAL.lddi.knx.driver.KnxDpt5Instance

All Implemented Interfaces:

org.osgi.service.device.Constants, org.osgi.util.tracker.ServiceTrackerCustomizer, IKnxDpt5, IKnxReceiveMessage

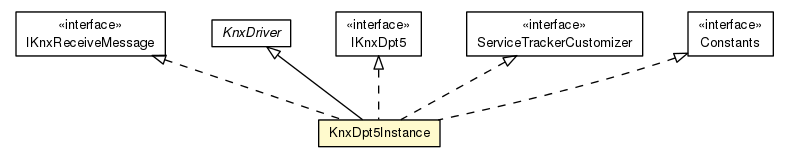

public class KnxDpt5Instance
extends KnxDriver
implements IKnxDpt5, IKnxReceiveMessage, org.osgi.util.tracker.ServiceTrackerCustomizer, org.osgi.service.device.Constants

Working instance of the IKnxDpt5 driver. Registers a service/device in OSGi registry. Tracks on the KNX groupDevice service passed in the attach method in KnxDpt5Driver class. This instance is passed to the consuming client (e.g. universAAL exporter bundle). When the KNX groupDevice service disappears, this driver is removed from the consuming client and detached from the groupDevice. This driver handles knx 4-bit unsigned int events (knx datapoint 5), which is dimming step and blind step.

Author:

Thomas Fuxreiter (foex@gmx.at)

Field Summary

Fields inherited from class org.universAAL.lddi.knx.interfaces.KnxDriver

client, groupDevice

Fields inherited from interface org.universAAL.lddi.knx.groupdevicecategory.IKnxDpt5

CLASS, DEFAULT_MAX_VALUE, DEFAULT_MIN_VALUE, MANUFACTURER, MATCH_CLASS, MATCH_MAKE, MATCH_MODEL, MATCH_SERIAL, MATCH_VERSION, MODEL, MY_DEVICE_CATEGORY, RESOLUTION_5_001, RESOLUTION_5_003, RESOLUTION_5_004, RESOLUTION_5_010, REVISION, SERIAL

Fields inherited from interface org.osgi.service.device.Constants

DEVICE_CATEGORY, DEVICE_DESCRIPTION, DEVICE_SERIAL, DRIVER_ID

Constructor Summary

Constructors

Constructor and Description
KnxDpt5Instance() Empty constructor for Unit Tests.
KnxDpt5Instance(KnxDpt5Driver parent_)

Method Summary

Modifier and Type	Method and Description
Object	addingService(org.osgi.framework.ServiceReference reference) track on my groupDevice
void	modifiedService(org.osgi.framework.ServiceReference reference, Object service)
void	newMessageFromKnxBus(byte[] event) Receive low level messages from the knx bus
void	removedService(org.osgi.framework.ServiceReference reference, Object service)
void	sendMessageToKnxBus(float value) Transfer float value to KNX data byte array (payload).

Methods inherited from class org.universAAL.lddi.knx.interfaces.KnxDriver

attachDriver, clearHexValue, detachDriver, removeDriver, setgroupDevice

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

KnxDpt5Instance

public KnxDpt5Instance(KnxDpt5Driver parent_)

Parameters:

c - OSGi BundleContext

sr - Service reference of KNX groupDevice

client - Link to consumer of this driver (e.g. universAAL exporter bundle)

KnxDpt5Instance

public KnxDpt5Instance()

Empty constructor for Unit Tests.

Method Detail

addingService

public Object addingService(org.osgi.framework.ServiceReference reference)

track on my groupDevice

Specified by:

addingService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

Parameters:

IKnxDpt5 - groupDevice service

Returns:

The service object to be tracked for the ServiceReference object or null if the ServiceReference object should not be tracked.

modifiedService

public void modifiedService(org.osgi.framework.ServiceReference reference,
                            Object service)

Specified by:

modifiedService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

removedService

public void removedService(org.osgi.framework.ServiceReference reference,
                           Object service)

Specified by:

removedService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

newMessageFromKnxBus

public void newMessageFromKnxBus(byte[] event)

Description copied from interface: IKnxReceiveMessage

Receive low level messages from the knx bus

Specified by:

newMessageFromKnxBus in interface IKnxReceiveMessage

Parameters:

event - the status/event byte of the knx telegram

sendMessageToKnxBus

public void sendMessageToKnxBus(float value)

Transfer float value to KNX data byte array (payload). Call driver.
