IKnxDpt9 (universAAL Super POM 3.4.2-SNAPSHOT API)

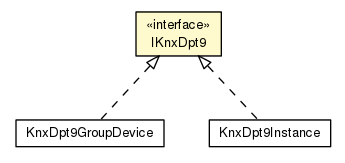

All Known Implementing Classes:

KnxDpt9GroupDevice, KnxDpt9Instance
```
public interface IKnxDpt9
```
Base GroupDeviceCategory for KNX datapoint type "2-Octet Float Value". Specification from KNX Datapoint Types v1.07.00 AS : Format: 2 octets: F16 MSB LSB float value |-------- --------| encoding MEEEEMMM MMMMMMMM FloatValue = (0,01*M)*2(E) E = [0 : 15] M = [-2 048 : 2 047], two's complement notation For all Datapoint Types 9.xxx, the encoded value 7FFFh shall always be used to denote invalid data. Possible values are from 0 - 255. Range: [-671 088,64 : 670 760,96] PDT: PDT_KNX_FLOAT In general GroupDeviceCategories specify: - rules and interfaces needed for the communication between OSGi groupDevice service and driver service. Both of them (groupDevice and driver) implement this IF. - a set of service registration properties, their data types and semantics (mandatory or optional) - a range of match values

Author:

Thomas Fuxreiter (foex@gmx.at)

Field Summary

Fields
Modifier and Type	Field and Description
`static String`	`CLASS`
`static byte[]`	`DEFAULT_INVALID_VALUE`
`static byte[]`	`DEFAULT_MAX_VALUE`
`static byte[]`	`DEFAULT_MIN_VALUE`
`static String`	`MANUFACTURER`
`static int`	`MATCH_CLASS`
`static int`	`MATCH_MAKE`
`static int`	`MATCH_MODEL`
`static int`	`MATCH_SERIAL`
`static int`	`MATCH_VERSION`
`static String`	`MODEL`
`static KnxGroupDeviceCategoryUtil.KnxGroupDeviceCategory`	`MY_DEVICE_CATEGORY`
`static float`	`RESOLUTION_9_001` 9.001 - DPT_Value_Temp From -273°C to +670760°C - Resolution: 0,01°C
`static String`	`REVISION`
`static String`	`SERIAL`

- Field Detail
  - MY_DEVICE_CATEGORY
```
static final KnxGroupDeviceCategoryUtil.KnxGroupDeviceCategory MY_DEVICE_CATEGORY
```
  - MATCH_SERIAL
```
static final int MATCH_SERIAL
```
    See Also:

    Constant Field Values
  - MATCH_VERSION
```
static final int MATCH_VERSION
```
    See Also:

    Constant Field Values
  - MATCH_MODEL
```
static final int MATCH_MODEL
```
    See Also:

    Constant Field Values
  - MATCH_MAKE
```
static final int MATCH_MAKE
```
    See Also:

    Constant Field Values
  - MATCH_CLASS
```
static final int MATCH_CLASS
```
    See Also:

    Constant Field Values
  - CLASS
```
static final String CLASS
```
    See Also:

    Constant Field Values
  - MODEL
```
static final String MODEL
```
    See Also:

    Constant Field Values
  - MANUFACTURER
```
static final String MANUFACTURER
```
    See Also:

    Constant Field Values
  - REVISION
```
static final String REVISION
```
    See Also:

    Constant Field Values
  - SERIAL
```
static final String SERIAL
```
    See Also:

    Constant Field Values
  - DEFAULT_MAX_VALUE
```
static final byte[] DEFAULT_MAX_VALUE
```
  - DEFAULT_MIN_VALUE
```
static final byte[] DEFAULT_MIN_VALUE
```
  - DEFAULT_INVALID_VALUE
```
static final byte[] DEFAULT_INVALID_VALUE
```
  - RESOLUTION_9_001
```
static final float RESOLUTION_9_001
```
    9.001 - DPT_Value_Temp From -273°C to +670760°C - Resolution: 0,01°C

    See Also:

    Constant Field Values
