org.universAAL.ui.handler.gui.swing.model

Class FormModel

java.lang.Object

org.universAAL.ui.handler.gui.swing.model.FormModel

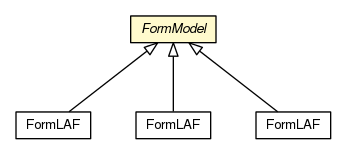

Direct Known Subclasses:

FormLAF, FormLAF, FormLAF

public abstract class FormModel
extends Object

Model for Forms, all FormLAF should extend this class which will provide the available panels (Standard, submits and IO). This model also provides other functionalities such as the parent tree construction for subdialogs. And antecessor query to check if a dialog is the parent tree of the form.

Author:

amedrano

See Also:

Form

Field Summary

Fields

Modifier and Type	Field and Description
protected Form	form Reference to RDF class.
static String	IO_NAME The name set to IO panel.
protected GroupModel	ioGroupModel The model for the IOGroup.
static String	SUB_NAME The name set to Submits panel.
protected GroupModel	submitsGroupModel the model for the submitsGroup.
static String	SYS_NAME The name set to System buttons panel.
protected GroupModel	sysGroupModel The model for the systemGroup.

Constructor Summary

Constructors

Modifier	Constructor and Description
protected	FormModel(Form f, Renderer renderer) Constructor for a given Form.

Method Summary

Modifier and Type	Method and Description
void	finalizeForm() Terminate the current dialog, close the frame, and unregister from FormModelMapper.
Model	findModel(String URI) Find the Model in the children corresponding to the FormControl's URI
Form	getForm() Get the Form related to this FormModel.
protected JComponent	getIOPanel() construct the IO Panel for the Form
protected JComponent	getIOPanel(int depth) Construct the IO Panel for the parent with given depth.
Renderer	getRenderer() Get the Renderer associated to this FormModel.
protected UIRequest	getRequest() Get the original Request.
int	getSubdialogLevel() Get the Depth of the current FormModel.
protected JComponent	getSubmitPanel() Construct the Submit Panel for the Form
protected JComponent	getSubmitPanel(int depth) Construct the Submit Panel for the parent with given depth.
protected JComponent	getSystemPanel() construct the System buttons Panel for the Form
String[]	getTitlePath() Get the list of all parent form titles.
boolean	isAntecessor(String uri) Checks if the URI represents any antecessor Form of the current FormModel.
void	setRequest(UIRequest request) Set the Original Request.
abstract void	showForm() Construct the Frame that displays the Form and make it visible.
protected abstract void	terminateDialog() Terminate the dialog, closing the frame, and any required procedure.
void	updateMissingInput(Input in) Finds the Model for the Input and instructs it to InputModel.updateAsMissing().

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

form

protected Form form

Reference to RDF class.

ioGroupModel

protected GroupModel ioGroupModel

The model for the IOGroup.

sysGroupModel

protected GroupModel sysGroupModel

The model for the systemGroup.

submitsGroupModel

protected GroupModel submitsGroupModel

the model for the submitsGroup.

IO_NAME

public static final String IO_NAME

The name set to IO panel.

See Also:

Constant Field Values

SUB_NAME

public static final String SUB_NAME

The name set to Submits panel.

See Also:

Constant Field Values

SYS_NAME

public static final String SYS_NAME

The name set to System buttons panel.

See Also:

Constant Field Values

Constructor Detail

FormModel

protected FormModel(Form f,
                    Renderer renderer)

Constructor for a given Form. Retrieves the parent (if there is any) and computes the depth. Registers the form in the FormModelMapper to be retrieved by successors.

Parameters:

f - The Form for which the model is constructed.

renderer - The Renderer used to access FormManager and ModelMapper

Method Detail

showForm

public abstract void showForm()

Construct the Frame that displays the Form and make it visible.

terminateDialog

protected abstract void terminateDialog()

Terminate the dialog, closing the frame, and any required procedure.

finalizeForm

public void finalizeForm()

Terminate the current dialog, close the frame, and unregister from FormModelMapper.

getForm

public Form getForm()

Get the Form related to this FormModel.

Returns:

the Form

isAntecessor

public boolean isAntecessor(String uri)

Checks if the URI represents any antecessor Form of the current FormModel.

Parameters:

uri - candidate antecessor's URI

Returns:

true if uri is equal or an antecessor of the current FormModel.

getIOPanel

protected JComponent getIOPanel()

construct the IO Panel for the Form

Returns:

a JPanel with all the components inside Form.getIOControls() group.

getSystemPanel

protected JComponent getSystemPanel()

construct the System buttons Panel for the Form

Returns:

a JPanel with all the components inside Form.getStandardButtons() group.

getSubmitPanel

protected JComponent getSubmitPanel()

Construct the Submit Panel for the Form

Returns:

a JPanel with all the components inside Form.getSubmits() group.

getIOPanel

protected JComponent getIOPanel(int depth)

Construct the IO Panel for the parent with given depth.

Parameters:

depth - the desired depth.

Returns:

a JPanel with all the components inside Form.getIOControls() group of the antecessor.

See Also:

subDialogLevel, getIOPanel()

getSubmitPanel

protected JComponent getSubmitPanel(int depth)

Construct the Submit Panel for the parent with given depth.

Parameters:

depth - the desired depth.

Returns:

a JPanel with all the components inside Form.getSubmits() group of the antecessor.

See Also:

subDialogLevel, getSubmitPanel()

getSubdialogLevel

public int getSubdialogLevel()

Get the Depth of the current FormModel.

Returns:

depth (A.K.A subdialogLevel)

See Also:

subDialogLevel

getRenderer

public Renderer getRenderer()

Get the Renderer associated to this FormModel.

Returns:

the Renderer

getTitlePath

public String[] getTitlePath()

Get the list of all parent form titles.

Returns:

an array of titles, the first one being the farthest ancestor and the last being the current form's title.

setRequest

public void setRequest(UIRequest request)

Set the Original Request.

Parameters:

request -

getRequest

protected UIRequest getRequest()

Get the original Request.

Returns:

updateMissingInput

public void updateMissingInput(Input in)

Finds the Model for the Input and instructs it to InputModel.updateAsMissing().

Parameters:

in -

findModel

public Model findModel(String URI)

Find the Model in the children corresponding to the FormControl's URI

Parameters:

URI - the URI of the FormControl to find the model for.

Returns:

the model if found, null otherwise.
