Model (universAAL Super POM 3.4.2-SNAPSHOT API)

java.lang.Object
- org.universAAL.ui.handler.gui.swing.model.Model

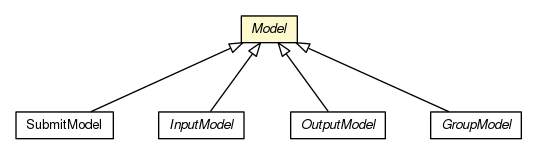

Direct Known Subclasses:

GroupModel, InputModel, OutputModel, SubmitModel
```
public abstract class Model
extends Object
```
Abstract Class for all Form Control Models.

Author:

amedrano

See Also:

FormControl

Field Summary

Fields
Modifier and Type	Field and Description
`protected FormControl`	`fc` the `FormControl` for which this model represents.
`static String`	`FORM_CONTROL_IN_TABLE` A property added to FormControls added to tables
`protected JComponent`	`jc` The `JComponent` being generated.
`protected LabelModel`	`label` The Label Model labeling the Form Control.
`protected boolean`	`needsLabel` Indicates if the `FormControl` needs to be associated with a label.
`protected boolean`	`needsPostNewLine` Indicates a new line should follow this component.
`protected boolean`	`needsPreNewLine` Indicates this component should be in a new line

Constructor Summary

Constructors
Constructor and Description

Model(FormControl control, Renderer renderer)
Model constructor.

Constructors
Constructor and Description
`Model(FormControl control, Renderer renderer)` Model constructor.

Method Summary

All Methods Instance Methods Abstract Methods Concrete Methods
Modifier and Type	Method and Description
`boolean`	`correspondsTo(String formControlURI)` Checks if this model corresponds to the form control with the given URI.
`JComponent`	`getComponent()` Returns the `JComponent`, and updates representing this `FormControl`.
`LabelModel`	`getLabelModel()` Models (if needed) and returns the `LabelModel` for the `FormControl`.
`abstract JComponent`	`getNewComponent()` generate the `JComponent` that displays this `FormControl`'s information.
`int`	`getPositionInGroup()` Calculates the position in the parent group of the modeled `FormControl`.
`Renderer`	`getRenderer()` Get the `Renderer` instance to which this `Model` is associated to
`boolean`	`isInDialog()` test whether this `FormControl` is in a Dialog type dialog.
`boolean`	`isInIOGroup()` test whether this `FormControl` is in a IO root group.
`boolean`	`isInMainMenu()` test whether this `FormControl` is in a Main Menu type dialog.
`boolean`	`isInMessage()` test whether this `FormControl` is in a Message type dialog.
`boolean`	`isInStandardGroup()` test whether this `FormControl` is in a standard buttons root group.
`boolean`	`isInSubDialog()` test whether this `FormControl` is in a Subdialog type dialog.
`boolean`	`isInSubmitGroup()` test whether this `FormControl` is in a submit buttons root group.
`boolean`	`isInTable()`
`abstract boolean`	`isValid()` Test if the `JComponent` information provided by the user is valid according to the `FormControl`'s definition.
`boolean`	`needsLabel()` tests if there is a need to render the Label of this `FormControl`, as the representation might have already included.
`boolean`	`needsPostNewLine()`
`boolean`	`needsPreNewLine()`
`void`	`update()` Adds all the needed information to the rendered component (in Model view).

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - FORM_CONTROL_IN_TABLE
```
public static final String FORM_CONTROL_IN_TABLE
```
    A property added to FormControls added to tables

    See Also:

    Constant Field Values
  - fc
```
protected FormControl fc
```
    the FormControl for which this model represents.
  - needsLabel
```
protected boolean needsLabel
```
    Indicates if the FormControl needs to be associated with a label. True by default
  - needsPreNewLine
```
protected boolean needsPreNewLine
```
    Indicates this component should be in a new line
  - needsPostNewLine
```
protected boolean needsPostNewLine
```
    Indicates a new line should follow this component.
  - jc
```
protected JComponent jc
```
    The JComponent being generated.
  - label
```
protected LabelModel label
```
    The Label Model labeling the Form Control.
- Constructor Detail
  - Model
```
public Model(FormControl control,
             Renderer renderer)
```
    Model constructor.

    Parameters:

    control - The RDF component which this Model represents.

    renderer -
- Method Detail
  - needsLabel
```
public boolean needsLabel()
```
    tests if there is a need to render the Label of this FormControl, as the representation might have already included.

    Returns:

    whether it needsLabel or not.
  - needsPreNewLine
```
public boolean needsPreNewLine()
```
    Returns:

    the needsPreNewLine
  - needsPostNewLine
```
public boolean needsPostNewLine()
```
    Returns:

    the needsPostNewLine
  - isInMessage
```
public boolean isInMessage()
```
    test whether this FormControl is in a Message type dialog.

    Returns:

    true if the FormControl is in a Message Form
  - isInMainMenu
```
public boolean isInMainMenu()
```
    test whether this FormControl is in a Main Menu type dialog.

    Returns:

    true if the FormControl is in a Main Menu Form
  - isInDialog
```
public boolean isInDialog()
```
    test whether this FormControl is in a Dialog type dialog.

    Returns:

    true if the FormControl is in a Dialog Form
  - isInSubDialog
```
public boolean isInSubDialog()
```
    test whether this FormControl is in a Subdialog type dialog.

    Returns:

    true if the FormControl is in a Subdialog Form
  - isInStandardGroup
```
public boolean isInStandardGroup()
```
    test whether this FormControl is in a standard buttons root group.

    Returns:

    true if the FormControl is within the standard buttons group
  - isInIOGroup
```
public boolean isInIOGroup()
```
    test whether this FormControl is in a IO root group.

    Returns:

    true if the FormControl is within the IO group
  - isInSubmitGroup
```
public boolean isInSubmitGroup()
```
    test whether this FormControl is in a submit buttons root group.

    Returns:

    true if the FormControl is within the Submits group
  - isInTable
```
public boolean isInTable()
```
  - isValid
```
public abstract boolean isValid()
```
    Test if the JComponent information provided by the user is valid according to the FormControl's definition.

    Returns:

    true if the data has passed every restriction
  - getComponent
```
public JComponent getComponent()
```
    Returns the JComponent, and updates representing this FormControl. If it isn't already created, it generates it.

    Returns:

    a JComponent Representing model's information,
  - update
```
public void update()
```
    Adds all the needed information to the rendered component (in Model view). In LAF view, it add/updates all LAF components.
  - getNewComponent
```
public abstract JComponent getNewComponent()
```
    generate the JComponent that displays this FormControl's information.

    Returns:

    a JComponent initialised with the model's information,
  - getRenderer
```
public Renderer getRenderer()
```
    Get the Renderer instance to which this Model is associated to

    Returns:

    the Renderer
  - correspondsTo
```
public boolean correspondsTo(String formControlURI)
```
    Checks if this model corresponds to the form control with the given URI.

    Parameters:

    formControlURI - the FormControl's URI to check with.

    Returns:

    true if the FormControl's URI for this model is equal to formControlURI
  - getLabelModel
```
public LabelModel getLabelModel()
```
    Models (if needed) and returns the LabelModel for the FormControl. This method May be overridden to personalize Labels for certain FormControls.

    Returns:
  - getPositionInGroup
```
public int getPositionInGroup()
```
    Calculates the position in the parent group of the modeled FormControl.

    Returns:

    the position the FormControl was added to the group. 0 is first, -1 if not calculable (ie, fc is rootgroup).
