org.universAAL.ontology.shape

Class Shape3D

java.lang.Object

org.universAAL.middleware.rdf.Resource

org.universAAL.middleware.rdf.FinalizedResource

org.universAAL.middleware.owl.ManagedIndividual

org.universAAL.ontology.shape.Shape

org.universAAL.ontology.shape.Shape3D

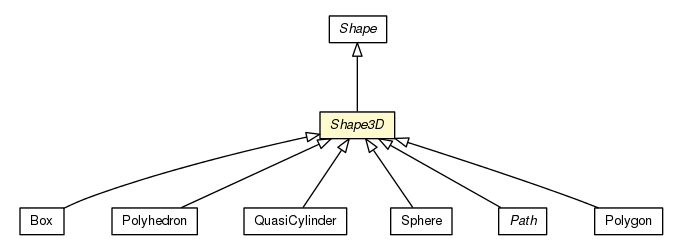

Direct Known Subclasses:

Box, Path, Polygon, Polyhedron, QuasiCylinder, Sphere

public abstract class Shape3D
extends Shape

Ontological representation of a tri-dimensional shape. Methods included in this class are the mandatory ones for representing an ontological concept in Java classes for universAAL. Usually it includes getters and setters for most of its properties.

Author:

chwirth

Field Summary

Fields

Modifier and Type	Field and Description
static String	MY_URI
static String	PROP_2D_REPRESENTATION

Fields inherited from class org.universAAL.ontology.shape.Shape

PROP_BOUNDING_VOLUME, PROP_LOCAL_COORDINATE_SYSTEM, PROP_POINT_REPRESENTATION

Fields inherited from class org.universAAL.middleware.owl.ManagedIndividual

OWL_NAMESPACE, TYPE_OWL_INDIVIDUAL, TYPE_OWL_THING

Fields inherited from class org.universAAL.middleware.rdf.Resource

ANON_URI_PREFIX, blockAddingTypes, isXMLLiteral, NAMESPACE_PREFIX, ns_delim_index, PROP_INVOLVED_HUMAN_USER, PROP_RDF_FIRST, PROP_RDF_REST, PROP_RDF_TYPE, PROP_RDFS_COMMENT, PROP_RDFS_LABEL, PROP_SERIALIZATION_FULL, PROP_SERIALIZATION_OPTIONAL, PROP_SERIALIZATION_REDUCED, PROP_SERIALIZATION_UNDEFINED, props, RDF_EMPTY_LIST, RDF_NAMESPACE, RDFS_NAMESPACE, SERVICE_NAMESPACE, TYPE_RDF_LIST, TYPE_RDFS_CLASS, uri, VOCABULARY_NAMESPACE

Constructor Summary

Constructors

Constructor and Description
Shape3D() Creates a Shape object
Shape3D(CoordinateSystem system) Creates a Shape object
Shape3D(Point pointRep, CoordinateSystem system) Creates a Shape object
Shape3D(String uri) Creates a Shape object
Shape3D(String uri, CoordinateSystem system) Creates a Shape object
Shape3D(String uri, Point pointRep, CoordinateSystem system) Creates a Shape object

Method Summary

Modifier and Type	Method and Description
Shape2D	get2DRepresentation()
String	getClassURI() Get the class URI for this ManagedIndividual.
int	getPropSerializationType(String propURI) Answers if the given property has to be considered when serializing this individual in a minimized way, and if not ignore-able, whether its value should be presented in its full form or can be reduced.
void	remove2DRepresentation()
void	set2DRepresentation(Shape2D shape)

Methods inherited from class org.universAAL.ontology.shape.Shape

computeBoundingVolume, contains, getBoundingVolume, getCenter, getDistanceByBoundingVolume, getDistanceTo, getLocalCoordinateSystem, getPointRepresentation, intersects, removeBoundingVolume, removePointRepresentation, setBoundingVolume, setLocalCoordinateSystem, setPointRepresentation

Methods inherited from class org.universAAL.middleware.owl.ManagedIndividual

checkCompatibility, checkMembership, copy, deepCopy, getClassRestrictionsOnProperty, getInstance, getNonAbstractSuperClasses, getNonabstractSuperClasses, getOntClassInfo, getTypeURI, isRegisteredClassURI, isWellFormed, setProperty, setPropertyPathFromOffset, toManagedIndividual

Methods inherited from class org.universAAL.middleware.rdf.FinalizedResource

addType, getLocalName, getNamespace, getProperty, getPropertyURIs, getType, getTypes, getURI, hasQualifiedName, isAnon, numberOfProperties

Methods inherited from class org.universAAL.middleware.rdf.Resource

addMultiLangProp, asList, asList, asRDFList, changeProperty, equals, generateAnonURI, getDefaultLang, getFilename, getMultiLangProp, getOrConstructLabel, getOrConstructLabel, getResource, getResourceComment, getResourceLabel, getResourceLabel, getStaticFieldValue, hashCode, hasProperty, isAnon, isBlockingAddingTypes, isClosedCollection, isQualifiedName, literal, representsQualifiedURI, serializesAsXMLLiteral, setPropertyPath, setPropertyPath, setResourceComment, setResourceLabel, toString, toStringRecursive, toStringRecursive, unliteral

Methods inherited from class java.lang.Object

clone, finalize, getClass, notify, notifyAll, wait, wait, wait

Field Detail

MY_URI

public static final String MY_URI

See Also:

Constant Field Values

PROP_2D_REPRESENTATION

public static final String PROP_2D_REPRESENTATION

See Also:

Constant Field Values

Constructor Detail

Shape3D

public Shape3D(String uri)

Creates a Shape object

Parameters:

uri - the object URI

Shape3D

public Shape3D()

Creates a Shape object

Shape3D

public Shape3D(String uri,
               Point pointRep,
               CoordinateSystem system)

Creates a Shape object

Parameters:

uri - this value can also be a null object

pointRep - The place name. A null object is not allowed

system - the local coordinate system

Shape3D

public Shape3D(Point pointRep,
               CoordinateSystem system)

Creates a Shape object

Parameters:

pointRep - a single point representing the shape

system - the local coordinate system

Shape3D

public Shape3D(CoordinateSystem system)

Creates a Shape object

Parameters:

system - the local coordinate system

Shape3D

public Shape3D(String uri,
               CoordinateSystem system)

Creates a Shape object

Parameters:

uri - identifier for the shape

system - the local coordinate system

Method Detail

getClassURI

public String getClassURI()

Description copied from class: ManagedIndividual

Get the class URI for this ManagedIndividual. All non-abstract subclasses MUST overwrite this method!

Overrides:

getClassURI in class Shape

Returns:

The class URI.

get2DRepresentation

public Shape2D get2DRepresentation()

Returns:

a projected 2d representation of the object, if the property was set

set2DRepresentation

public void set2DRepresentation(Shape2D shape)

remove2DRepresentation

public void remove2DRepresentation()

getPropSerializationType

public int getPropSerializationType(String propURI)

Description copied from class: ManagedIndividual

Answers if the given property has to be considered when serializing this individual in a minimized way, and if not ignore-able, whether its value should be presented in its full form or can be reduced. The return value must be one of Resource.PROP_SERIALIZATION_OPTIONAL, Resource.PROP_SERIALIZATION_REDUCED, or Resource.PROP_SERIALIZATION_FULL. It can be assumed that the given property is one of those returned by FinalizedResource.getPropertyURIs(). Decision criterion should be if the value of this property is absolutely necessary when this resource is being sent to a remote node. If the subclass rates it as unlikely that the receiver side would need this info, the answer should be PROP_SERIALIZATION_OPTIONAL in favor of lower communication traffic and higher performance even at risk of a possible additional query on the receiver side for fetching this info. With the same rationale, if a property should be included in the process of serialization, it is preferable to include it in a reduced form; in this case the return value should be PROP_SERIALIZATION_REDUCED, otherwise PROP_SERIALIZATION_FULL can be returned.

Overrides:

getPropSerializationType in class Shape
