org.universAAL.lddi.lib.activityhub.driver.interfaces

Class ActivityHubDriver

java.lang.Object

org.universAAL.lddi.lib.activityhub.driver.interfaces.ActivityHubDriver

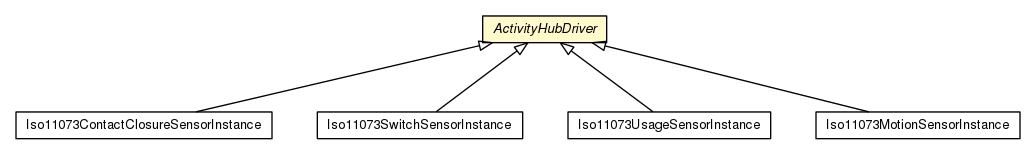

Direct Known Subclasses:

Iso11073ContactClosureSensorInstance, Iso11073MotionSensorInstance, Iso11073SwitchSensorInstance, Iso11073UsageSensorInstance

public abstract class ActivityHubDriver
extends Object

This abstract class is designed to help developing an activityhub driver. It stores information about the deviceIds (which one?) and commands (from iso spec) Additional client config necessary? Actuators additionally have to implement the IActivityHubActuator IF. It provides an OSGi service tracker for the attached ISO device service.

Author:

Thomas Fuxreiter

Field Summary

Fields

Modifier and Type	Field and Description
protected ActivityHubDriverClient	client upper layer instance
protected ActivityHubSensor	device

Constructor Summary

Constructors

Constructor and Description
ActivityHubDriver(ActivityHubDriverClient client) Driver state

Method Summary

Modifier and Type	Method and Description
protected boolean	attachDriver() coupling this driver to device reference
void	detachDriver() decoupling this driver from device reference
ActivityHubSensor	getDevice() device access
abstract int	getLastSensorEvent()
void	removeDriver() Remove this driver from the driver list in knx network driver
boolean	setDevice(ActivityHubSensor device) store the device Add this driver instance to the driver list in my consumer.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

device

protected ActivityHubSensor device

client

protected ActivityHubDriverClient client

upper layer instance

Constructor Detail

ActivityHubDriver

public ActivityHubDriver(ActivityHubDriverClient client)

Driver state

Method Detail

setDevice

public final boolean setDevice(ActivityHubSensor device)

store the device Add this driver instance to the driver list in my consumer. Key = deviceId link this driver to the device

Parameters:

device - the device to set

attachDriver

protected boolean attachDriver()

coupling this driver to device reference

Parameters:

id -

detachDriver

public final void detachDriver()

decoupling this driver from device reference

getDevice

public final ActivityHubSensor getDevice()

device access

Returns:

getLastSensorEvent

public abstract int getLastSensorEvent()

Returns:

last incoming sensor event

removeDriver

public final void removeDriver()

Remove this driver from the driver list in knx network driver

Parameters:

device - the device to remove
