org.universAAL.lddi.exporter.activityhub.driver

Class Iso11073ContactClosureSensorInstance

java.lang.Object

org.universAAL.lddi.lib.activityhub.driver.interfaces.ActivityHubDriver

org.universAAL.lddi.exporter.activityhub.driver.Iso11073ContactClosureSensorInstance

All Implemented Interfaces:

org.osgi.service.device.Constants, org.osgi.util.tracker.ServiceTrackerCustomizer, ActivityHubBaseDeviceCategory, Iso11073ContactClosureSensor

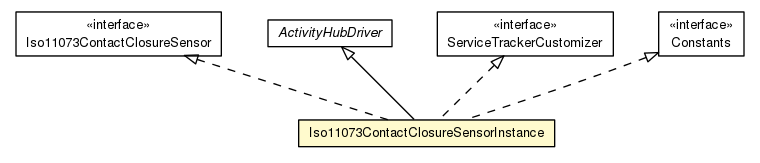

public class Iso11073ContactClosureSensorInstance
extends ActivityHubDriver
implements Iso11073ContactClosureSensor, org.osgi.util.tracker.ServiceTrackerCustomizer, org.osgi.service.device.Constants

Working instance of the ActivityHub ContactClosure driver. Tracks on the ContactClosureSensor device service passed in the attach method in Iso11073ContactClosureSensorDriver class. This instance is passed to the consuming client (e.g. universAAL exporter bundle). When the ContactClosureSensor device service disappears, this driver is removed from the consuming client and from the device.

Author:

Thomas Fuxreiter (foex@gmx.at)

Field Summary

Fields inherited from class org.universAAL.lddi.lib.activityhub.driver.interfaces.ActivityHubDriver

client, device

Fields inherited from interface org.universAAL.lddi.lib.activityhub.devicecategory.Iso11073ContactClosureSensor

MY_DEVICE_CATEGORY

Fields inherited from interface org.universAAL.lddi.lib.activityhub.devicecategory.ActivityHubBaseDeviceCategory

CLASS, MANUFACTURER, MATCH_CLASS, MATCH_MAKE, MATCH_MODEL, MATCH_SERIAL, MATCH_VERSION, MODEL, REVISION, SERIAL

Fields inherited from interface org.osgi.service.device.Constants

DEVICE_CATEGORY, DEVICE_DESCRIPTION, DEVICE_SERIAL, DRIVER_ID

Constructor Summary

Constructors

Constructor and Description
Iso11073ContactClosureSensorInstance(org.osgi.framework.BundleContext c, ActivityHubDriverClient client, org.osgi.service.log.LogService log)

Method Summary

Modifier and Type	Method and Description
Object	addingService(org.osgi.framework.ServiceReference reference)
int	getLastSensorEvent()
void	incomingSensorEvent(int event) forward event to client
void	modifiedService(org.osgi.framework.ServiceReference reference, Object service)
void	removedService(org.osgi.framework.ServiceReference reference, Object service)

Methods inherited from class org.universAAL.lddi.lib.activityhub.driver.interfaces.ActivityHubDriver

attachDriver, detachDriver, getDevice, removeDriver, setDevice

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

Iso11073ContactClosureSensorInstance

public Iso11073ContactClosureSensorInstance(org.osgi.framework.BundleContext c,
                                            ActivityHubDriverClient client,
                                            org.osgi.service.log.LogService log)

Parameters:

c - OSGi BundleContext

sr - Service reference of ISO device

client - Link to consumer of this driver (e.g. universAAL exporter bundle)

Method Detail

getLastSensorEvent

public int getLastSensorEvent()

Specified by:

getLastSensorEvent in class ActivityHubDriver

Returns:

last incoming sensor event

addingService

public Object addingService(org.osgi.framework.ServiceReference reference)

Specified by:

addingService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

Parameters:

ActivityHubSensor - service

modifiedService

public void modifiedService(org.osgi.framework.ServiceReference reference,
                            Object service)

Specified by:

modifiedService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

removedService

public void removedService(org.osgi.framework.ServiceReference reference,
                           Object service)

Specified by:

removedService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

incomingSensorEvent

public void incomingSensorEvent(int event)

forward event to client

Specified by:

incomingSensorEvent in interface ActivityHubBaseDeviceCategory

Parameters:

event - Integer representation of a specific ActivityHubSensorEvent. example MotionSensor: motion-detected = 0; no-condition-detected = 3
