IKnxDpt3 (universAAL Super POM 3.4.2-SNAPSHOT API)

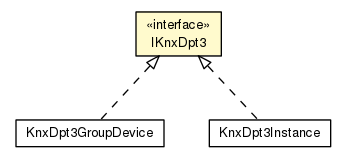

All Known Implementing Classes:

KnxDpt3GroupDevice, KnxDpt3Instance
```
public interface IKnxDpt3
```
Base GroupDeviceCategory for KNX datapoint type B1U3 (4-Bit). Possible values are Bit 4: c = {0,1} (Decrease, Increase). Bit 1-3: StepCode = {000b ... 111b} (The amount of intervals into which the range of 0 % - 100 % is subdivided, or the break indication) 001b ... 111b: Step Number of intervals = 2^(stepcode-1) Maximum resolution is 64 = 2^(7-1) 000b: Break In general GroupDeviceCategories specify: - rules and interfaces needed for the communication between OSGi groupDevice service and driver service. Both of them (groupDevice and driver) implement this IF. - a set of service registration properties, their data types and semantics (mandatory or optional) - a range of match values

Author:

Thomas Fuxreiter (foex@gmx.at)

Field Summary

Fields
Modifier and Type	Field and Description
`static String`	`CLASS`
`static String`	`DECREASE_3_007`
`static String`	`DOWN_3_008`
`static String`	`INCREASE_3_007` 3.007 - DPT_Control_Dimming
`static String`	`MANUFACTURER`
`static int`	`MATCH_CLASS`
`static int`	`MATCH_MAKE`
`static int`	`MATCH_MODEL`
`static int`	`MATCH_SERIAL`
`static int`	`MATCH_VERSION`
`static String`	`MODEL`
`static KnxGroupDeviceCategoryUtil.KnxGroupDeviceCategory`	`MY_DEVICE_CATEGORY`
`static String`	`REVISION`
`static String`	`SERIAL`
`static String`	`STEPCODE_BREAK`
`static String`	`UP_3_008` 3.008 - DPT_Control_Blinds This DPT can be used both for the relative positioning of the vertical blinds positions as well as for the relative positioning of the angle of the slats.

- Field Detail
  - MY_DEVICE_CATEGORY
```
static final KnxGroupDeviceCategoryUtil.KnxGroupDeviceCategory MY_DEVICE_CATEGORY
```
  - MATCH_SERIAL
```
static final int MATCH_SERIAL
```
    See Also:

    Constant Field Values
  - MATCH_VERSION
```
static final int MATCH_VERSION
```
    See Also:

    Constant Field Values
  - MATCH_MODEL
```
static final int MATCH_MODEL
```
    See Also:

    Constant Field Values
  - MATCH_MAKE
```
static final int MATCH_MAKE
```
    See Also:

    Constant Field Values
  - MATCH_CLASS
```
static final int MATCH_CLASS
```
    See Also:

    Constant Field Values
  - CLASS
```
static final String CLASS
```
    See Also:

    Constant Field Values
  - MODEL
```
static final String MODEL
```
    See Also:

    Constant Field Values
  - MANUFACTURER
```
static final String MANUFACTURER
```
    See Also:

    Constant Field Values
  - REVISION
```
static final String REVISION
```
    See Also:

    Constant Field Values
  - SERIAL
```
static final String SERIAL
```
    See Also:

    Constant Field Values
  - STEPCODE_BREAK
```
static final String STEPCODE_BREAK
```
    See Also:

    Constant Field Values
  - INCREASE_3_007
```
static final String INCREASE_3_007
```
    3.007 - DPT_Control_Dimming

    See Also:

    Constant Field Values
  - DECREASE_3_007
```
static final String DECREASE_3_007
```
    See Also:

    Constant Field Values
  - UP_3_008
```
static final String UP_3_008
```
    3.008 - DPT_Control_Blinds This DPT can be used both for the relative positioning of the vertical blinds positions as well as for the relative positioning of the angle of the slats.

    See Also:

    Constant Field Values
  - DOWN_3_008
```
static final String DOWN_3_008
```
    See Also:

    Constant Field Values
