org.universAAL.lddi.knx.driver

Class KnxDpt3Instance

java.lang.Object

org.universAAL.lddi.knx.interfaces.KnxDriver

org.universAAL.lddi.knx.driver.KnxDpt3Instance

All Implemented Interfaces:

org.osgi.service.device.Constants, org.osgi.util.tracker.ServiceTrackerCustomizer, IKnxDpt3, IKnxReceiveMessage

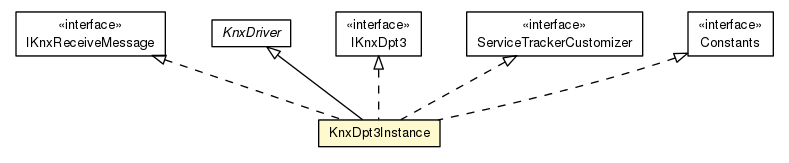

public class KnxDpt3Instance
extends KnxDriver
implements IKnxDpt3, IKnxReceiveMessage, org.osgi.util.tracker.ServiceTrackerCustomizer, org.osgi.service.device.Constants

Working instance of the IKnxDpt3 driver. Registers a service/device in OSGi registry. Tracks on the KNX groupDevice service passed in the attach method in KnxDpt3Driver class. This instance is passed to the consuming client (e.g. universAAL exporter bundle). When the KNX groupDevice service disappears, this driver is removed from the consuming client and detached from the groupDevice. This driver handles knx 4-bit unsigned int events (knx datapoint 3), which is dimming step and blind step.

Author:

Thomas Fuxreiter (foex@gmx.at)

Field Summary

Fields inherited from class org.universAAL.lddi.knx.interfaces.KnxDriver

client, groupDevice

Fields inherited from interface org.universAAL.lddi.knx.groupdevicecategory.IKnxDpt3

CLASS, DECREASE_3_007, DOWN_3_008, INCREASE_3_007, MANUFACTURER, MATCH_CLASS, MATCH_MAKE, MATCH_MODEL, MATCH_SERIAL, MATCH_VERSION, MODEL, MY_DEVICE_CATEGORY, REVISION, SERIAL, STEPCODE_BREAK, UP_3_008

Fields inherited from interface org.osgi.service.device.Constants

DEVICE_CATEGORY, DEVICE_DESCRIPTION, DEVICE_SERIAL, DRIVER_ID

Constructor Summary

Constructors

Constructor and Description
KnxDpt3Instance() Empty constructor for Unit Tests.
KnxDpt3Instance(KnxDpt3Driver parent_)

Method Summary

Modifier and Type	Method and Description
Object	addingService(org.osgi.framework.ServiceReference reference) track on my groupDevice
void	modifiedService(org.osgi.framework.ServiceReference reference, Object service)
void	newMessageFromKnxBus(byte[] event) Receive low level messages from the knx bus
void	removedService(org.osgi.framework.ServiceReference reference, Object service)

Methods inherited from class org.universAAL.lddi.knx.interfaces.KnxDriver

attachDriver, clearHexValue, detachDriver, removeDriver, setgroupDevice

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

KnxDpt3Instance

public KnxDpt3Instance(KnxDpt3Driver parent_)

Parameters:

c - OSGi BundleContext

sr - Service reference of KNX groupDevice

client - Link to consumer of this driver (e.g. universAAL exporter bundle)

KnxDpt3Instance

public KnxDpt3Instance()

Empty constructor for Unit Tests.

Method Detail

addingService

public Object addingService(org.osgi.framework.ServiceReference reference)

track on my groupDevice

Specified by:

addingService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

Parameters:

IKnxDpt3 - groupDevice service

Returns:

The service object to be tracked for the ServiceReference object or null if the ServiceReference object should not be tracked.

modifiedService

public void modifiedService(org.osgi.framework.ServiceReference reference,
                            Object service)

Specified by:

modifiedService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

removedService

public void removedService(org.osgi.framework.ServiceReference reference,
                           Object service)

Specified by:

removedService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

newMessageFromKnxBus

public void newMessageFromKnxBus(byte[] event)

Description copied from interface: IKnxReceiveMessage

Receive low level messages from the knx bus

Specified by:

newMessageFromKnxBus in interface IKnxReceiveMessage

Parameters:

event - the status/event byte of the knx telegram
