org.universAAL.ui.handler.gui.swing.defaultLookAndFeel.Layout

Class FormLayout

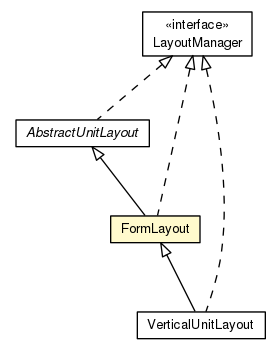

java.lang.Object

org.universAAL.ui.handler.gui.swing.defaultLookAndFeel.Layout.AbstractUnitLayout

org.universAAL.ui.handler.gui.swing.defaultLookAndFeel.Layout.FormLayout

All Implemented Interfaces:

LayoutManager

Direct Known Subclasses:

VerticalUnitLayout

public class FormLayout
extends AbstractUnitLayout
implements LayoutManager

This LayoutManager organizes elements in rows, maintaining each element with it's label (this pair is managed as a Unit). Each Row may contain more than one Unit (if both can fit in it). Each Row is justified, ie all Units in each Row are extended to occupy the full width provided. The spare space is added to each Unit maintaining the ratio of space (minimum or preferred size).

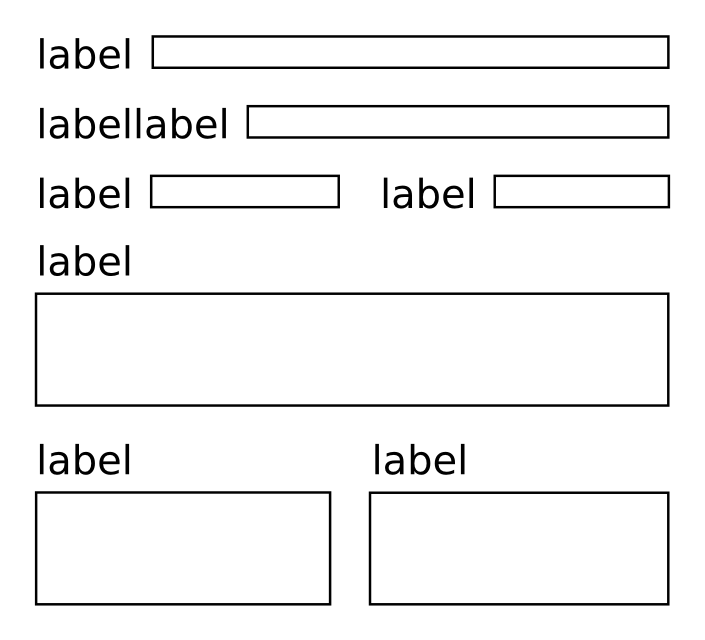

Preview:

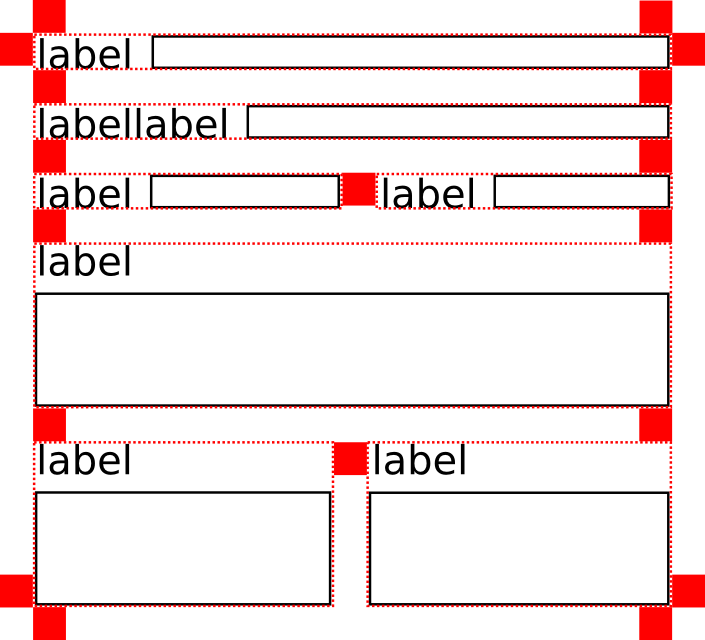

Each Row is spaced one AbstractUnitLayout.gap between each other and also the margin all arround has the same size.

Author:

amedrano

Field Summary

Fields inherited from class org.universAAL.ui.handler.gui.swing.defaultLookAndFeel.Layout.AbstractUnitLayout

gap, HORIZONAL_UNIT_HEIGHT_LIMIT, LABEL_HEIGHT_THRESHOLD, PIXELS_PER_FONT_SIZE, POST_NEWLINE, PRE_NEWLINE

Constructor Summary

Constructors

Constructor and Description
FormLayout() Create a FormLayout with a default gap of 5.
FormLayout(int gap) Create a FormLayout witha specific gap.

Method Summary

Modifier and Type	Method and Description
void	addLayoutComponent(String name, Component comp)
void	layoutContainer(Container parent)
Dimension	minimumLayoutSize(Container parent)
Dimension	preferredLayoutSize(Container parent)
void	removeLayoutComponent(Component comp)

Methods inherited from class org.universAAL.ui.handler.gui.swing.defaultLookAndFeel.Layout.AbstractUnitLayout

getSreenRatio, setNewLineAfter, setNewLineBefore

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

FormLayout

public FormLayout()

Create a FormLayout with a default gap of 5.

FormLayout

public FormLayout(int gap)

Create a FormLayout witha specific gap.

Parameters:

gap - the space in pixels to leave between elements and as margins

Method Detail

preferredLayoutSize

public Dimension preferredLayoutSize(Container parent)

Specified by:

preferredLayoutSize in interface LayoutManager

Specified by:

preferredLayoutSize in class AbstractUnitLayout

layoutContainer

public void layoutContainer(Container parent)

Specified by:

layoutContainer in interface LayoutManager

Specified by:

layoutContainer in class AbstractUnitLayout

minimumLayoutSize

public Dimension minimumLayoutSize(Container parent)

Specified by:

minimumLayoutSize in interface LayoutManager

Specified by:

minimumLayoutSize in class AbstractUnitLayout

removeLayoutComponent

public void removeLayoutComponent(Component comp)

Specified by:

removeLayoutComponent in interface LayoutManager

Specified by:

removeLayoutComponent in class AbstractUnitLayout

addLayoutComponent

public void addLayoutComponent(String name,
                               Component comp)

Specified by:

addLayoutComponent in interface LayoutManager

Specified by:

addLayoutComponent in class AbstractUnitLayout
