org.universAAL.ui.dm.userInteraction

Class PendingDialogBuilder

java.lang.Object

org.universAAL.ui.dm.userInteraction.PendingDialogBuilder

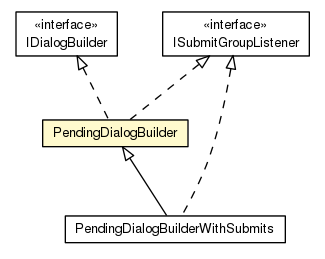

All Implemented Interfaces:

IDialogBuilder, ISubmitGroupListener

Direct Known Subclasses:

PendingDialogBuilderWithSubmits

public class PendingDialogBuilder
extends Object
implements ISubmitGroupListener, IDialogBuilder

Build a form that list all pending dialogs for a user. Manage the interaction to allow the user to select a dialog, remove all dialogs, suspend a dialog...

Author:

amedrano created: 26-sep-2012 13:03:50

Field Summary

Fields

Modifier and Type	Field and Description
static String	ABORT_ALL_OPEN_DIALOGS_CALL The submission ID to abort all open dialogs.
static String	CLOSE_OPEN_DIALOGS_CALL The submission ID to close the dialog that shows all pending dialogs.
protected IUIRequestPool	dialogPool The DialogPool containing all dialogs for the user.
static String	PROP_DLG_LIST_DIALOG_DATE
static String	PROP_DLG_LIST_DIALOG_ID
static String	PROP_DLG_LIST_DIALOG_LIST
static String	PROP_DLG_LIST_DIALOG_TITLE
static String	PROP_DLG_LIST_SENT_ITEMS
protected List<String>	sentItems the list of Dialog Id sent
static String	SWITCH_TO_CALL_PREFIX Prefix of a submission ID to switch to a pending dialog.
protected UserDialogManager	userDM

Constructor Summary

Constructors

Constructor and Description
PendingDialogBuilder(UserDialogManager udm) The constructor will build the form and send the request to the user.

Method Summary

Modifier and Type	Method and Description
Form	buildForm()
void	handle(UIResponse response) Handle the UIResponse for any of the SubmitionIDs declared in ISubmitGroupListener.listDeclaredSubmitIds().
Set<String>	listDeclaredSubmitIds() List the SubmissionIDs implementations of this interface will handle.
void	showDialog() Build and show dialog.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

SWITCH_TO_CALL_PREFIX

public static final String SWITCH_TO_CALL_PREFIX

Prefix of a submission ID to switch to a pending dialog. All pending dialogs are given in a Repeat control which automatically adds index numbers to this prefix.

See Also:

Constant Field Values

PROP_DLG_LIST_DIALOG_DATE

public static final String PROP_DLG_LIST_DIALOG_DATE

See Also:

Constant Field Values

PROP_DLG_LIST_DIALOG_LIST

public static final String PROP_DLG_LIST_DIALOG_LIST

See Also:

Constant Field Values

PROP_DLG_LIST_DIALOG_TITLE

public static final String PROP_DLG_LIST_DIALOG_TITLE

See Also:

Constant Field Values

PROP_DLG_LIST_DIALOG_ID

public static final String PROP_DLG_LIST_DIALOG_ID

See Also:

Constant Field Values

PROP_DLG_LIST_SENT_ITEMS

public static final String PROP_DLG_LIST_SENT_ITEMS

See Also:

Constant Field Values

CLOSE_OPEN_DIALOGS_CALL

public static final String CLOSE_OPEN_DIALOGS_CALL

The submission ID to close the dialog that shows all pending dialogs.

See Also:

Constant Field Values

ABORT_ALL_OPEN_DIALOGS_CALL

public static final String ABORT_ALL_OPEN_DIALOGS_CALL

The submission ID to abort all open dialogs. A button with this functionality is available in the dialog showing the list of all pending dialogs.

See Also:

Constant Field Values

dialogPool

protected IUIRequestPool dialogPool

The DialogPool containing all dialogs for the user.

sentItems

protected List<String> sentItems

the list of Dialog Id sent

userDM

protected UserDialogManager userDM

Constructor Detail

PendingDialogBuilder

public PendingDialogBuilder(UserDialogManager udm)

The constructor will build the form and send the request to the user.

Parameters:

udm -

Method Detail

buildForm

public Form buildForm()

listDeclaredSubmitIds

public Set<String> listDeclaredSubmitIds()

List the SubmissionIDs implementations of this interface will handle.

Specified by:

listDeclaredSubmitIds in interface ISubmitGroupListener

Returns:

handle

public void handle(UIResponse response)

Handle the UIResponse for any of the SubmitionIDs declared in ISubmitGroupListener.listDeclaredSubmitIds().

Specified by:

handle in interface ISubmitGroupListener

showDialog

public void showDialog()

Build and show dialog.

Specified by:

showDialog in interface IDialogBuilder
