org.universAAL.support.utils.ui

Class Control

java.lang.Object

org.universAAL.support.utils.ui.Control

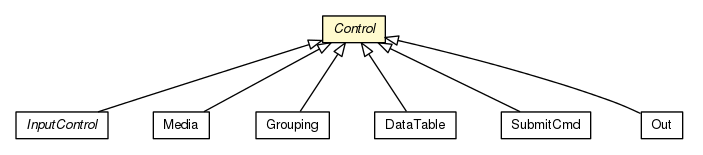

Direct Known Subclasses:

DataTable, Grouping, InputControl, Media, Out, SubmitCmd

public abstract class Control
extends Object

Abstract class representing a Form Control in a Simple UI request. Form Controls are UI elements that can be added to Containers, be them Dialogs, SubDialogs, Messages or even other Controls such as Groups or Repeats.

Author:

alfiva

Field Summary

Fields

Modifier and Type	Field and Description
protected String	help Help text popup.
protected String	hint Hint text popup.
protected Label	label Text label.
static String	MY_NAMESPACE Default namespace
protected PropertyPath	ref Path for ID.

Constructor Summary

Constructors

Constructor and Description
Control()

Method Summary

Modifier and Type	Method and Description
abstract String[]	create(Group group) This method is for internal use of utils only.
String	getHelp() Get the Help string associated with this control.
String	getHint() Get the Hint string associated with this control.
String	getLabel() Get the Label string associated with this control.
String[]	getReference() Get the reference Property Path that identifies this control within the request and the response in the case of Input Controls.
void	setHelp(String help) Set the Help string associated with this control.
void	setHint(String hint) Set the Hint string associated with this control.
void	setLabel(String txt) Set the Label string associated with this control.
void	setReference(String reference) Set the reference Property Path that identifies this control within the request and the response in the case of Input Controls.
void	setReference(String[] reference) Set the reference Property Path that identifies this control within the request and the response in the case of Input Controls.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

MY_NAMESPACE

public static final String MY_NAMESPACE

Default namespace

See Also:

Constant Field Values

ref

protected PropertyPath ref

Path for ID.

label

protected Label label

Text label.

help

protected String help

Help text popup.

hint

protected String hint

Hint text popup.

Constructor Detail

Control

public Control()

Method Detail

create

public abstract String[] create(Group group)

This method is for internal use of utils only. It creates the actual official universAAL control configured with the properties defined by this class. Once it is created it cannot be modified.

Parameters:

group - The UI group to which the control is being added.

Returns:

An array of Strings representing the property path used to identify the control in the response. This is only of interest for Input Controls. Submits and Triggers have only one String value. If the path has not been set manually by the time this method is called, an automatic one must be generated.

getHelp

public String getHelp()

Get the Help string associated with this control.

Returns:

The Help String

setHelp

public void setHelp(String help)

Set the Help string associated with this control.

Parameters:

help - The Help String

getHint

public String getHint()

Get the Hint string associated with this control.

Returns:

The Help String

setHint

public void setHint(String hint)

Set the Hint string associated with this control.

Parameters:

hint - The Hint String

getReference

public String[] getReference()

Get the reference Property Path that identifies this control within the request and the response in the case of Input Controls. For Submits, it is a single String ID.

Returns:

The Array of Strings representing the reference Property path

setReference

public void setReference(String reference)

Set the reference Property Path that identifies this control within the request and the response in the case of Input Controls. For Submits, it is a single String ID.

Parameters:

reference - The String representing the reference Property path or ID

setReference

public void setReference(String[] reference)

Set the reference Property Path that identifies this control within the request and the response in the case of Input Controls. For Submits, it is a single String ID, so it only counts the last value.

Parameters:

reference - The Array of Strings representing the reference Property path or ID

getLabel

public String getLabel()

Get the Label string associated with this control.

Returns:

The Label String

setLabel

public void setLabel(String txt)

Set the Label string associated with this control.

Parameters:

txt - The Label String
