org.universAAL.ontology.location

Class Place

java.lang.Object

org.universAAL.middleware.rdf.Resource

org.universAAL.middleware.rdf.FinalizedResource

org.universAAL.middleware.owl.ManagedIndividual

org.universAAL.middleware.owl.ComparableIndividual

org.universAAL.middleware.owl.supply.AbsLocation

org.universAAL.ontology.location.Location

org.universAAL.ontology.location.Place

All Implemented Interfaces:

Comparable

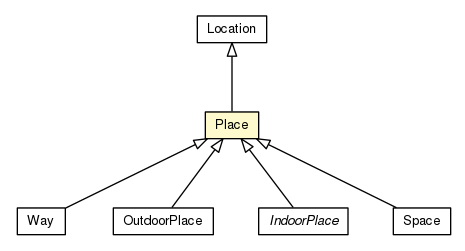

Direct Known Subclasses:

IndoorPlace, OutdoorPlace, Space, Way

public class Place
extends Location

Ontological representation of a place (which is not only a location but also has some more properties. It is more concrete). Methods included in this class are the mandatory ones for representing an ontological concept in Java classes for universAAL. Usually it includes getters and setters for most of its properties.

Author:

chwirth

Field Summary

Fields

Modifier and Type	Field and Description
static String	MY_URI
static String	PROP_HAS_ADDRESS
static String	PROP_HAS_SHAPE
static String	PROP_LOCATION_OF_PHYSICAL_THING

Fields inherited from class org.universAAL.ontology.location.Location

PROP_CONTAINS, PROP_HAS_NAME, PROP_IS_ADJACENT_TO, PROP_IS_CONNECTED_TO, PROP_IS_CONTAINED_IN

Fields inherited from class org.universAAL.middleware.owl.ComparableIndividual

NON_COMPARABLE_INDIVIDUALS

Fields inherited from class org.universAAL.middleware.owl.ManagedIndividual

OWL_NAMESPACE, TYPE_OWL_INDIVIDUAL, TYPE_OWL_THING

Fields inherited from class org.universAAL.middleware.rdf.Resource

ANON_URI_PREFIX, blockAddingTypes, isXMLLiteral, NAMESPACE_PREFIX, ns_delim_index, PROP_INVOLVED_HUMAN_USER, PROP_RDF_FIRST, PROP_RDF_REST, PROP_RDF_TYPE, PROP_RDFS_COMMENT, PROP_RDFS_LABEL, PROP_SERIALIZATION_FULL, PROP_SERIALIZATION_OPTIONAL, PROP_SERIALIZATION_REDUCED, PROP_SERIALIZATION_UNDEFINED, props, RDF_EMPTY_LIST, RDF_NAMESPACE, RDFS_NAMESPACE, SERVICE_NAMESPACE, TYPE_RDF_LIST, TYPE_RDFS_CLASS, uri, VOCABULARY_NAMESPACE

Constructor Summary

Constructors

Constructor and Description
Place() Creates a Place object
Place(Shape shape) for interal use only
Place(String uri) Creates a Place object
Place(String uri, Shape shape) Creates a Place object
Place(String uri, String name) Creates a Place object
Place(String uri, String name, Shape shape) Creates a Place object

Method Summary

Modifier and Type	Method and Description
void	addContainedLocation(Place location, float x, float y, float z) Adds a place this place contains, originated at the given point
void	addContainedLocationRelativeToCorner(Place location, float x, float y, float z) Adds a place this place contains, originated at the given point.
boolean	contains(Point p)
Address	getAddress() Gets the Address value
String	getClassURI() Get the class URI for this ManagedIndividual.
Location	getContainingLocation()
float	getDistanceTo(Location other) This method calculates the distance between a Place object and a Location object.
PhysicalThing	getPhysicalThingofLocation()
int	getPropSerializationType(String propURI) Answers if the given property has to be considered when serializing this individual in a minimized way, and if not ignore-able, whether its value should be presented in its full form or can be reduced.
Shape	getShape()
Place	getSmallestContaining(Point p) returns the smallest, contained place that contains the given point does not consider overlapping Places
void	setAddress(Address val) Sets the Address value
void	setContainingLocation(Place place, float x, float y, float z) Sets the place this place is contained in, originated at the given point
void	setPhysicalThingofLocation(PhysicalThing pt) this is a simple setter method of the property location_of_physical_thing of the location

Methods inherited from class org.universAAL.ontology.location.Location

addAdjacentLocation, addConnectedLocation, addContainedLocation, clearAdjacentLocations, clearConnectedLocations, clearContainedLocations, clearContainingLocations, compareTo, getAdjacentLocations, getConnectedLocations, getContainedLocations, getDistanceTo, getNext, getPrevious, hasConnectionTo, isAdjacentTo, ord, removeAdjacentLocation, removeConnectedLocation, removeContainedLocation, setContainingLocation, setProperty

Methods inherited from class org.universAAL.middleware.owl.ComparableIndividual

equal, getClassMaximum, getClassMaximum, getClassMinimum, getClassMinimum, getMaximum, getMinimum, greater, greaterEqual, less, lessEqual

Methods inherited from class org.universAAL.middleware.owl.ManagedIndividual

checkCompatibility, checkMembership, copy, deepCopy, getClassRestrictionsOnProperty, getInstance, getNonAbstractSuperClasses, getNonabstractSuperClasses, getOntClassInfo, getTypeURI, isRegisteredClassURI, isWellFormed, setPropertyPathFromOffset, toManagedIndividual

Methods inherited from class org.universAAL.middleware.rdf.FinalizedResource

addType, getLocalName, getNamespace, getProperty, getPropertyURIs, getType, getTypes, getURI, hasQualifiedName, isAnon, numberOfProperties

Methods inherited from class org.universAAL.middleware.rdf.Resource

addMultiLangProp, asList, asList, asRDFList, changeProperty, equals, generateAnonURI, getDefaultLang, getFilename, getMultiLangProp, getOrConstructLabel, getOrConstructLabel, getResource, getResourceComment, getResourceLabel, getResourceLabel, getStaticFieldValue, hashCode, hasProperty, isAnon, isBlockingAddingTypes, isClosedCollection, isQualifiedName, literal, representsQualifiedURI, serializesAsXMLLiteral, setPropertyPath, setPropertyPath, setResourceComment, setResourceLabel, toString, toStringRecursive, toStringRecursive, unliteral

Methods inherited from class java.lang.Object

clone, finalize, getClass, notify, notifyAll, wait, wait, wait

Field Detail

MY_URI

public static final String MY_URI

See Also:

Constant Field Values

PROP_HAS_SHAPE

public static final String PROP_HAS_SHAPE

See Also:

Constant Field Values

PROP_LOCATION_OF_PHYSICAL_THING

public static final String PROP_LOCATION_OF_PHYSICAL_THING

See Also:

Constant Field Values

PROP_HAS_ADDRESS

public static final String PROP_HAS_ADDRESS

See Also:

Constant Field Values

Constructor Detail

Place

public Place(String uri)

Creates a Place object

Parameters:

uri - the object URI

Place

public Place()

Creates a Place object

Place

public Place(String uri,
             String name)

Creates a Place object

Parameters:

uri - this value can also be a null object

name - The place name. A null object is not allowed

Place

public Place(String uri,
             String name,
             Shape shape)

Creates a Place object

Parameters:

uri - this value can also be a null object

name - The place name. A null object is not allowed

shape - the shape of the place. IS not allowed to have a OriginedMetric as local Coordinate System

Place

public Place(Shape shape)

for interal use only

Parameters:

shape -

Place

public Place(String uri,
             Shape shape)

Creates a Place object

Parameters:

uri - this value can also be a null object

shape - the shape of the place. IS not allowed to have a OriginedMetric as local Coordinate System

Method Detail

getClassURI

public String getClassURI()

Description copied from class: ManagedIndividual

Get the class URI for this ManagedIndividual. All non-abstract subclasses MUST overwrite this method!

Overrides:

getClassURI in class Location

Returns:

The class URI.

See Also:

ManagedIndividual.getClassURI()

getShape

public Shape getShape()

getPhysicalThingofLocation

public PhysicalThing getPhysicalThingofLocation()

setPhysicalThingofLocation

public void setPhysicalThingofLocation(PhysicalThing pt)

this is a simple setter method of the property location_of_physical_thing of the location

Parameters:

pt -

getPropSerializationType

public int getPropSerializationType(String propURI)

Description copied from class: ManagedIndividual

Answers if the given property has to be considered when serializing this individual in a minimized way, and if not ignore-able, whether its value should be presented in its full form or can be reduced. The return value must be one of Resource.PROP_SERIALIZATION_OPTIONAL, Resource.PROP_SERIALIZATION_REDUCED, or Resource.PROP_SERIALIZATION_FULL. It can be assumed that the given property is one of those returned by FinalizedResource.getPropertyURIs(). Decision criterion should be if the value of this property is absolutely necessary when this resource is being sent to a remote node. If the subclass rates it as unlikely that the receiver side would need this info, the answer should be PROP_SERIALIZATION_OPTIONAL in favor of lower communication traffic and higher performance even at risk of a possible additional query on the receiver side for fetching this info. With the same rationale, if a property should be included in the process of serialization, it is preferable to include it in a reduced form; in this case the return value should be PROP_SERIALIZATION_REDUCED, otherwise PROP_SERIALIZATION_FULL can be returned.

Overrides:

getPropSerializationType in class Location

getDistanceTo

public float getDistanceTo(Location other)

This method calculates the distance between a Place object and a Location object.

Parameters:

other - the Location object

Returns:

a float value which provides information about the distance between the Place object and the Location Object

getSmallestContaining

public Place getSmallestContaining(Point p)

returns the smallest, contained place that contains the given point does not consider overlapping Places

Parameters:

p -

Returns:

the smallest containing place or null if the point is not contained

contains

public boolean contains(Point p)

getContainingLocation

public Location getContainingLocation()

Overrides:

getContainingLocation in class Location

Returns:

The value of "is contained in" property. If the property is not present a null object is returned.

setContainingLocation

public void setContainingLocation(Place place,
                                  float x,
                                  float y,
                                  float z)

Sets the place this place is contained in, originated at the given point

Parameters:

place - must have a shape

x - the x origin of this place

y - the y origin of this place

z - the z origin of this place

addContainedLocation

public void addContainedLocation(Place location,
                                 float x,
                                 float y,
                                 float z)

Adds a place this place contains, originated at the given point

Parameters:

place - must have a shape

x - the x origin of this place

y - the y origin of this place

z - the z origin of this place

addContainedLocationRelativeToCorner

public void addContainedLocationRelativeToCorner(Place location,
                                                 float x,
                                                 float y,
                                                 float z)

Adds a place this place contains, originated at the given point. The origin is not the center of the object, but the lower, left corner

Parameters:

place - must have a box shape

x - the x origin of this place

y - the y origin of this place

z - the z origin of this place

getAddress

public Address getAddress()

Gets the Address value

Returns:

The Address value

setAddress

public void setAddress(Address val)

Sets the Address value

Parameters:

reg - The value to set
