ServiceProfile (universAAL Super POM 3.4.2-SNAPSHOT API)

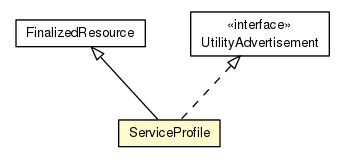

java.lang.Object
- org.universAAL.middleware.rdf.Resource
- - org.universAAL.middleware.rdf.FinalizedResource
  - - org.universAAL.middleware.service.owls.profile.ServiceProfile

All Implemented Interfaces:

Advertisement, Matchable, UtilityAdvertisement
```
public class ServiceProfile
extends FinalizedResource
implements UtilityAdvertisement
```
A "registration parameter" as accepted by the service bus of the middleware. It implements the concept of profile:Profile (xmlns:profile="http://www.daml.org/services/owl-s/1.1/Profile.owl#"), currently ignoring the following OWL-S properties: hasPrecondition, contactInformation, serviceClassification, serviceProduct, and serviceCategory.
ServiceCallees register to the service bus by providing a set of instances of this class as registration parameters, one for each "exported" operation that can be called by arbitrary ServiceCallers. A such operation has
- an internal ID that has to be provided as a URI string; it will be stored as the value for profile:has_process.
Author:

mtazari - Saied Tazari

Field Summary

Fields
Modifier and Type	Field and Description
`static String`	`MY_URI`
`static String`	`OWLS_PROFILE_NAMESPACE`
`static String`	`PROP_AVERAGE_QOS_RATING` A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services.
`static String`	`PROP_AVERAGE_RESPONSE_TIME` A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services.
`static String`	`PROP_HOST_LOCATION` A sub-property of profile:serviceParameter as a non-functional parameter to be provided by a registered service to indicate where the physical node hosting the service resides.
`static String`	`PROP_MAX_QOS_RATING` A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services.
`static String`	`PROP_MAX_RESPONSE_TIME` A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services.
`static String`	`PROP_MIN_QOS_RATING` A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services.
`static String`	`PROP_MIN_RESPONSE_TIME` A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services.
`static String`	`PROP_NUMBER_OF_QOS_RATINGS` A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services.
`static String`	`PROP_NUMBER_OF_RESPONSE_TIME_MEASUREMENTS` A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services.
`static String`	`PROP_OWLS_PROFILE_HAS_INPUT` The OWL-S property profile:hasInput
`static String`	`PROP_OWLS_PROFILE_HAS_OUTPUT` The OWL-S property profile:hasOutput
`static String`	`PROP_OWLS_PROFILE_HAS_PARAMETER` The OWL-S property profile:hasParameter
`static String`	`PROP_OWLS_PROFILE_HAS_PROCESS` The OWL-S property profile:has_process
`static String`	`PROP_OWLS_PROFILE_HAS_RESULT` The OWL-S property profile:hasResult
`static String`	`PROP_OWLS_PROFILE_SERVICE_NAME` The OWL-S property profile:serviceName
`static String`	`PROP_OWLS_PROFILE_SERVICE_PARAMETER` The OWL-S property profile:serviceParameter
`static String`	`PROP_OWLS_PROFILE_TEXT_DESCRIPTION` The OWL-S property profile:textDescription
`static String`	`PROP_RESPONSE_TIMEOUT` A sub-property of profile:serviceParameter as a non-functional parameter to be provided by a registered service to indicate after how many milliseconds of waiting for a response from the service, the middleware must send a timeout failure message to the caller.
`static String`	`PROP_SPATIAL_COVERAGE` A sub-property of profile:serviceParameter as a non-functional parameter to be provided by a registered service to indicate in which physical area it makes sense to utilize the service.

Fields inherited from class org.universAAL.middleware.rdf.Resource
ANON_URI_PREFIX, blockAddingTypes, isXMLLiteral, NAMESPACE_PREFIX, ns_delim_index, PROP_INVOLVED_HUMAN_USER, PROP_RDF_FIRST, PROP_RDF_REST, PROP_RDF_TYPE, PROP_RDFS_COMMENT, PROP_RDFS_LABEL, PROP_SERIALIZATION_FULL, PROP_SERIALIZATION_OPTIONAL, PROP_SERIALIZATION_REDUCED, PROP_SERIALIZATION_UNDEFINED, props, RDF_EMPTY_LIST, RDF_NAMESPACE, RDFS_NAMESPACE, SERVICE_NAMESPACE, TYPE_RDF_LIST, TYPE_RDFS_CLASS, uri, VOCABULARY_NAMESPACE

Constructor Summary

Constructors
Constructor and Description
`ServiceProfile()` Only for use by deserializers.
`ServiceProfile(Service s, String processURI)` The constructor to be used by `ServiceCallee`s.
`ServiceProfile(String uri)`

Method Summary

All Methods Static Methods Instance Methods Concrete Methods
Modifier and Type	Method and Description
`void`	`addAddEffect(String[] ppath, Object value)` Declares that a call to the service described by this profile adds the given `value` to the property reachable by the given `ppath`.
`void`	`addChangeEffect(String[] ppath, Object value)` Declares that a call to the service described by this profile changes the value of the property reachable by the given `ppath` to the given `value`.
`void`	`addClassConversionOutputBinding(ProcessOutput toParam, String[] sourceProp, TypeURI targetClass)` Declares that the output parameter specified by `toParam` will be an instance of the given `targetClass` as a result of converting the actual value of a property reachable by the given property path `sourceProp`.
`void`	`addInput(ProcessInput in)` Adds the given input parameter to the set of this service's input parameters.
`void`	`addLangConversionOutputBinding(ProcessOutput toParam, String[] sourceProp, String targetLang)` Declares that the output parameter specified by `toParam` will be the translation of the actual value of a property reachable by the given property path `sourceProp` into the given `targetLang`.
`static void`	`addNonFunctionalParameter(String subPropertyOfServiceParameter, Class subclassOfProfileParameter)` Sub-properties of profile:serviceParameter can be made known to the middleware by calling this method.
`void`	`addOutput(ProcessOutput out)` Adds the given output parameter to the set of this service's output parameters.
`void`	`addRemoveEffect(String[] ppath)` Declares that a call to the service described by this profile removes the value of the property reachable by the given `ppath`.
`void`	`addSimpleOutputBinding(ProcessOutput toParam, String[] sourceProp)` Declares that the output parameter specified by `toParam` will reflect the value of a property reachable by the given property path `sourceProp`.
`void`	`addUnitConversionOutputBinding(ProcessOutput toParam, String[] sourceProp, String targetUnit)` Declares that the output parameter specified by `toParam` will reflect the value of a property reachable by the given property path `sourceProp` in terms of the given measurement unit `targetUnit`.
`static ServiceProfile`	`deserializeProfile(String turtleSP)` Returns the de-serialized profile
`Resource[]`	`getEffects()` Returns the list of service effects; the main user of this method is the service bus.
`Iterator`	`getInputs()` Returns the list of service input parameters; the main user of this method is the service bus.
`int`	`getNumberOfInputs()`
`int`	`getNumberOfMandatoryInputs()`
`Resource[]`	`getOutputBindings()` Returns the list of declarations how the service output parameters are bound; the main user of this method is the service bus.
`Iterator`	`getOutputs()` Returns the list of service output parameters; the main user of this method is the service bus.
`String`	`getProcessURI()` Returns the URI that serves as the internal ID of the service on the side of the provider; the main user of this method is the service bus.
`String`	`getServiceDescription()` Returns the textual description of the service; the main user of this method is the service bus.
`String`	`getServiceName()` Returns the name of the service; the main user of this method is the service bus.
`Service`	`getTheService()` Returns the individual from the service ontology that represents the provided service; the main user of this method is the service bus.
`boolean`	`isEmpty()` Checks if input, output and result is empty.
`boolean`	`matches(Matchable other)`
`String`	`serializeProfile()` Returns the serialized profile as String
`boolean`	`setProperty(String propURI, Object value)` Adds a statement with this resource as the subject, the given `propURI` as the predicate and the given value as the object.

Methods inherited from class org.universAAL.middleware.rdf.FinalizedResource
addType, getLocalName, getNamespace, getProperty, getPropertyURIs, getType, getTypes, getURI, hasQualifiedName, isAnon, numberOfProperties

Methods inherited from class java.lang.Object
clone, finalize, getClass, notify, notifyAll, wait, wait, wait

- Field Detail
  - OWLS_PROFILE_NAMESPACE
```
public static final String OWLS_PROFILE_NAMESPACE
```
    See Also:

    Constant Field Values
  - MY_URI
```
public static final String MY_URI
```
    See Also:

    Constant Field Values
  - PROP_OWLS_PROFILE_SERVICE_NAME
```
public static final String PROP_OWLS_PROFILE_SERVICE_NAME
```
    The OWL-S property profile:serviceName

    See Also:

    Constant Field Values
  - PROP_OWLS_PROFILE_TEXT_DESCRIPTION
```
public static final String PROP_OWLS_PROFILE_TEXT_DESCRIPTION
```
    The OWL-S property profile:textDescription

    See Also:

    Constant Field Values
  - PROP_OWLS_PROFILE_HAS_PROCESS
```
public static final String PROP_OWLS_PROFILE_HAS_PROCESS
```
    The OWL-S property profile:has_process

    See Also:

    Constant Field Values
  - PROP_OWLS_PROFILE_HAS_INPUT
```
public static final String PROP_OWLS_PROFILE_HAS_INPUT
```
    The OWL-S property profile:hasInput

    See Also:

    Constant Field Values
  - PROP_OWLS_PROFILE_HAS_OUTPUT
```
public static final String PROP_OWLS_PROFILE_HAS_OUTPUT
```
    The OWL-S property profile:hasOutput

    See Also:

    Constant Field Values
  - PROP_OWLS_PROFILE_HAS_RESULT
```
public static final String PROP_OWLS_PROFILE_HAS_RESULT
```
    The OWL-S property profile:hasResult

    See Also:

    Constant Field Values
  - PROP_OWLS_PROFILE_SERVICE_PARAMETER
```
public static final String PROP_OWLS_PROFILE_SERVICE_PARAMETER
```
    The OWL-S property profile:serviceParameter

    See Also:

    Constant Field Values
  - PROP_OWLS_PROFILE_HAS_PARAMETER
```
public static final String PROP_OWLS_PROFILE_HAS_PARAMETER
```
    The OWL-S property profile:hasParameter

    See Also:

    Constant Field Values
  - PROP_AVERAGE_QOS_RATING
```
public static final String PROP_AVERAGE_QOS_RATING
```
    A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services. The range of this property is QoSRating.

    See Also:

    Constant Field Values
  - PROP_AVERAGE_RESPONSE_TIME
```
public static final String PROP_AVERAGE_RESPONSE_TIME
```
    A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services. The range of this property is ResponseTimeInMilliseconds .

    See Also:

    Constant Field Values
  - PROP_HOST_LOCATION
```
public static final String PROP_HOST_LOCATION
```
    A sub-property of profile:serviceParameter as a non-functional parameter to be provided by a registered service to indicate where the physical node hosting the service resides. The range of this property is SingleLocationParameter .

    See Also:

    Constant Field Values
  - PROP_MAX_QOS_RATING
```
public static final String PROP_MAX_QOS_RATING
```
    A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services. The range of this property is QoSRating.

    See Also:

    Constant Field Values
  - PROP_MAX_RESPONSE_TIME
```
public static final String PROP_MAX_RESPONSE_TIME
```
    A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services. The range of this property is ResponseTimeInMilliseconds .

    See Also:

    Constant Field Values
  - PROP_MIN_QOS_RATING
```
public static final String PROP_MIN_QOS_RATING
```
    A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services. The range of this property is QoSRating.

    See Also:

    Constant Field Values
  - PROP_MIN_RESPONSE_TIME
```
public static final String PROP_MIN_RESPONSE_TIME
```
    A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services. The range of this property is ResponseTimeInMilliseconds .

    See Also:

    Constant Field Values
  - PROP_NUMBER_OF_QOS_RATINGS
```
public static final String PROP_NUMBER_OF_QOS_RATINGS
```
    A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services. The range of this property is NumberOfSamples.

    See Also:

    Constant Field Values
  - PROP_NUMBER_OF_RESPONSE_TIME_MEASUREMENTS
```
public static final String PROP_NUMBER_OF_RESPONSE_TIME_MEASUREMENTS
```
    A sub-property of profile:serviceParameter as a non-functional parameter provided by the middleware for all registered services. The range of this property is NumberOfSamples.

    See Also:

    Constant Field Values
  - PROP_RESPONSE_TIMEOUT
```
public static final String PROP_RESPONSE_TIMEOUT
```
    A sub-property of profile:serviceParameter as a non-functional parameter to be provided by a registered service to indicate after how many milliseconds of waiting for a response from the service, the middleware must send a timeout failure message to the caller. The range of this property is ResponseTimeInMilliseconds .

    See Also:

    Constant Field Values
  - PROP_SPATIAL_COVERAGE
```
public static final String PROP_SPATIAL_COVERAGE
```
    A sub-property of profile:serviceParameter as a non-functional parameter to be provided by a registered service to indicate in which physical area it makes sense to utilize the service. The range of this property is MultiLocationParameter ; the union of the given locations will be interpreted as the area covered by the service.

    See Also:

    Constant Field Values
- Constructor Detail
  - ServiceProfile
```
public ServiceProfile()
```
    Only for use by deserializers.
  - ServiceProfile
```
public ServiceProfile(String uri)
```
  - ServiceProfile
```
public ServiceProfile(Service s,
                      String processURI)
```
    The constructor to be used by ServiceCallees. Effects, inputs, outputs and output bindings must be added to the profile using methods whose names starts with "add*". The rdfs:label and rdfs:comment provided by the class of the given service will be used as profile:serviceName and profile:textDescription respectively.

    Parameters:

    s - The individual service whose profile is being constructed

    processURI - The URI that is used by the ServiceCallee registering this profile as an internal ID for identifying the operation called
- Method Detail
  - addNonFunctionalParameter
```
public static void addNonFunctionalParameter(String subPropertyOfServiceParameter,
                                             Class subclassOfProfileParameter)
```
    Sub-properties of profile:serviceParameter can be made known to the middleware by calling this method.

    Parameters:

    subPropertyOfServiceParameter - The URI of the sub-property

    subclassOfProfileParameter - A subclass of ProfileParameter from which the values of the new property stem
  - addAddEffect
```
public void addAddEffect(String[] ppath,
                         Object value)
```
    Declares that a call to the service described by this profile adds the given value to the property reachable by the given ppath. The property should normally be a multi-valued property.
  - addChangeEffect
```
public void addChangeEffect(String[] ppath,
                            Object value)
```
    Declares that a call to the service described by this profile changes the value of the property reachable by the given ppath to the given value.
  - addClassConversionOutputBinding
```
public void addClassConversionOutputBinding(ProcessOutput toParam,
                                            String[] sourceProp,
                                            TypeURI targetClass)
```
    Declares that the output parameter specified by toParam will be an instance of the given targetClass as a result of converting the actual value of a property reachable by the given property path sourceProp.
  - addInput
```
public void addInput(ProcessInput in)
```
    Adds the given input parameter to the set of this service's input parameters.
  - addLangConversionOutputBinding
```
public void addLangConversionOutputBinding(ProcessOutput toParam,
                                           String[] sourceProp,
                                           String targetLang)
```
    Declares that the output parameter specified by toParam will be the translation of the actual value of a property reachable by the given property path sourceProp into the given targetLang.
  - addOutput
```
public void addOutput(ProcessOutput out)
```
    Adds the given output parameter to the set of this service's output parameters.
  - addRemoveEffect
```
public void addRemoveEffect(String[] ppath)
```
    Declares that a call to the service described by this profile removes the value of the property reachable by the given ppath.
  - addSimpleOutputBinding
```
public void addSimpleOutputBinding(ProcessOutput toParam,
                                   String[] sourceProp)
```
    Declares that the output parameter specified by toParam will reflect the value of a property reachable by the given property path sourceProp.
  - addUnitConversionOutputBinding
```
public void addUnitConversionOutputBinding(ProcessOutput toParam,
                                           String[] sourceProp,
                                           String targetUnit)
```
    Declares that the output parameter specified by toParam will reflect the value of a property reachable by the given property path sourceProp in terms of the given measurement unit targetUnit.
  - getEffects
```
public Resource[] getEffects()
```
    Returns the list of service effects; the main user of this method is the service bus.
  - getInputs
```
public Iterator getInputs()
```
    Returns the list of service input parameters; the main user of this method is the service bus.
  - getNumberOfInputs
```
public int getNumberOfInputs()
```
  - getNumberOfMandatoryInputs
```
public int getNumberOfMandatoryInputs()
```
  - getOutputs
```
public Iterator getOutputs()
```
    Returns the list of service output parameters; the main user of this method is the service bus.
  - getOutputBindings
```
public Resource[] getOutputBindings()
```
    Returns the list of declarations how the service output parameters are bound; the main user of this method is the service bus.
  - getProcessURI
```
public String getProcessURI()
```
    Returns the URI that serves as the internal ID of the service on the side of the provider; the main user of this method is the service bus.
  - getServiceName
```
public String getServiceName()
```
    Returns the name of the service; the main user of this method is the service bus.
  - getServiceDescription
```
public String getServiceDescription()
```
    Returns the textual description of the service; the main user of this method is the service bus.
  - getTheService
```
public Service getTheService()
```
    Returns the individual from the service ontology that represents the provided service; the main user of this method is the service bus.
  - isEmpty
```
public boolean isEmpty()
```
    Checks if input, output and result is empty.

    Returns:

    boolean
  - setProperty
```
public boolean setProperty(String propURI,
                           Object value)
```
    Description copied from class: Resource

    Adds a statement with this resource as the subject, the given propURI as the predicate and the given value as the object. Subclasses must override this in order to decide if the statement to be added fits the general class constraints. If not, the call of this method should be ignored. For each property only one single call may be made to this method, unless subsequent calls to this method for setting the value of the same property are treated as an update for an update-able property. Multi-valued properties must be set using an instance of List. The differentiation, if a such list should be treated as an rdf:List, can be made with the help of Resource.isClosedCollection(String). The default implementation here accepts all property-value pairs blindly except for rdf:type which is handled if the value is a type URI, a Resource or a java.util.List of them.
    Note: The setting of the property rdf:type is being handled by this class via the final methods Resource.addType(String, boolean), Resource.getType(), and Resource.getTypes(). Although these methods give the view of handling type URIs as strings, but in reality the types are stored as direct instances of this class. So, the subclasses should ignore calls for setting rdf:type; if not, then the subclass must pay attention that the value should be a List of direct instances of this class so that (1) the Resource.toString() method returns just the URI and (2) the serializers get no problems with the value. Also, settings via subclasses may be overwritten by this class if a subsequent call to Resource.addType(String, boolean) is made.

    Overrides:

    setProperty in class Resource

    Returns:

    true if the property changed as a result of the call

    See Also:

    Resource.setProperty(java.lang.String,java.lang.Object)
  - serializeProfile
```
public String serializeProfile()
```
    Returns the serialized profile as String
  - deserializeProfile
```
public static ServiceProfile deserializeProfile(String turtleSP)
```
    Returns the de-serialized profile
  - matches
```
public boolean matches(Matchable other)
```
    Specified by:

    matches in interface Matchable

    Returns:

    true if the other Matchable matches, false if not

    See Also:

    Matchable.matches(Matchable)

Class ServiceProfile

Field Summary

Fields inherited from class org.universAAL.middleware.rdf.Resource

Constructor Summary

Method Summary

Methods inherited from class org.universAAL.middleware.rdf.FinalizedResource

Methods inherited from class org.universAAL.middleware.rdf.Resource

Methods inherited from class java.lang.Object

Field Detail

OWLS_PROFILE_NAMESPACE

MY_URI

PROP_OWLS_PROFILE_SERVICE_NAME

PROP_OWLS_PROFILE_TEXT_DESCRIPTION

PROP_OWLS_PROFILE_HAS_PROCESS

PROP_OWLS_PROFILE_HAS_INPUT

PROP_OWLS_PROFILE_HAS_OUTPUT

PROP_OWLS_PROFILE_HAS_RESULT

PROP_OWLS_PROFILE_SERVICE_PARAMETER

PROP_OWLS_PROFILE_HAS_PARAMETER

PROP_AVERAGE_QOS_RATING

PROP_AVERAGE_RESPONSE_TIME

PROP_HOST_LOCATION

PROP_MAX_QOS_RATING

PROP_MAX_RESPONSE_TIME

PROP_MIN_QOS_RATING

PROP_MIN_RESPONSE_TIME

PROP_NUMBER_OF_QOS_RATINGS

PROP_NUMBER_OF_RESPONSE_TIME_MEASUREMENTS

PROP_RESPONSE_TIMEOUT

PROP_SPATIAL_COVERAGE

Constructor Detail

ServiceProfile

ServiceProfile

ServiceProfile

Method Detail

addNonFunctionalParameter

addAddEffect

addChangeEffect

addClassConversionOutputBinding

addInput

addLangConversionOutputBinding

addOutput

addRemoveEffect

addSimpleOutputBinding

addUnitConversionOutputBinding

getEffects

getInputs

getNumberOfInputs

getNumberOfMandatoryInputs

getOutputs

getOutputBindings

getProcessURI

getServiceName

getServiceDescription

getTheService

isEmpty

setProperty

serializeProfile

deserializeProfile

matches
