org.universAAL.middleware.owl

Class PropertyRestriction

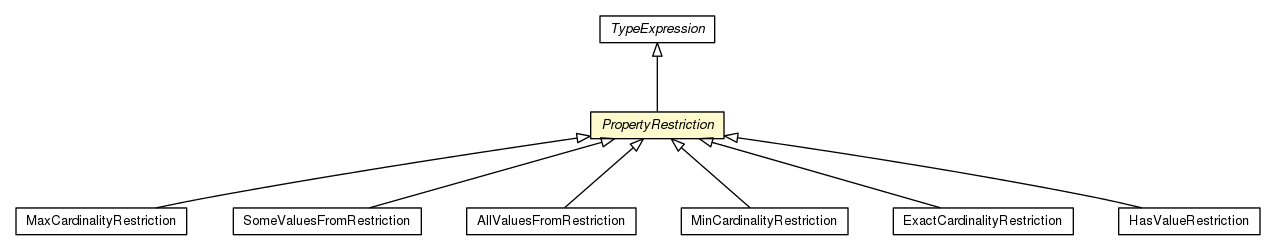

java.lang.Object

org.universAAL.middleware.rdf.Resource

org.universAAL.middleware.owl.TypeExpression

org.universAAL.middleware.owl.PropertyRestriction

Direct Known Subclasses:

AllValuesFromRestriction, ExactCardinalityRestriction, HasValueRestriction, MaxCardinalityRestriction, MinCardinalityRestriction, SomeValuesFromRestriction

public abstract class PropertyRestriction
extends TypeExpression

Base class for all TypeExpressions that impose a restriction on a property. Subclasses will implement the functionality for specific OWL restrictions.

All property restrictions are defined by a property and one ore more constraints and describe those individuals that are connected by the defined property to individuals/literals under the condition that the defined constraint is fulfilled.

Author:

Carsten Stockloew

See Also:

MergedRestriction

Field Summary

Fields

Modifier and Type	Field and Description
static String	MY_URI URI for owl:Restriction.
static String	PROP_OWL_ON_PROPERTY URI for owl:onProperty.
protected static Set<String>	propMap Set of all property URIs that are used in the different property restrictions.

Fields inherited from class org.universAAL.middleware.owl.TypeExpression

EXCEPTION_TTL, OWL_CLASS, OWL_NAMESPACE, PROP_RDFS_SUB_CLASS_OF, RDFS_DATATYPE, TYPE_OWL_THING

Fields inherited from class org.universAAL.middleware.rdf.Resource

ANON_URI_PREFIX, blockAddingTypes, isXMLLiteral, NAMESPACE_PREFIX, ns_delim_index, PROP_INVOLVED_HUMAN_USER, PROP_RDF_FIRST, PROP_RDF_REST, PROP_RDF_TYPE, PROP_RDFS_COMMENT, PROP_RDFS_LABEL, PROP_SERIALIZATION_FULL, PROP_SERIALIZATION_OPTIONAL, PROP_SERIALIZATION_REDUCED, PROP_SERIALIZATION_UNDEFINED, props, RDF_EMPTY_LIST, RDF_NAMESPACE, RDFS_NAMESPACE, SERVICE_NAMESPACE, TYPE_RDF_LIST, TYPE_RDFS_CLASS, uri, VOCABULARY_NAMESPACE

Method Summary

Modifier and Type	Method and Description
boolean	addToList(ArrayList a) Add this restriction to the given set of restrictions.
protected TypeExpression	copyTo(PropertyRestriction copy) Helper method to copy Restrictions.
String	getClassURI() Get the class URI for this PropertyRestriction.
Object	getConstraint() Get the constraint of all value restrictions (HasValueRestriction , SomeValuesFromRestriction, or AllValuesFromRestriction, but none of the cardinality restrictions).
String[]	getNamedSuperclasses() Get the set of class URIs for all super classes of the individuals of this class expression.
String	getOnProperty() Get the property for which this restriction is defined.
static PropertyRestriction	getRestriction(ArrayList a, String restrictionURI) Get a restriction with the given class URI from the given set of restrictions.
AllValuesFromRestriction	getRestrictionOnProperty(String propURI) This method is specifically defined for working with property paths, hence whenever it is called it means that the path is already processed until the 'onProperty' of this Restriction and now we are interested in the restrictions defined for the next property in the path (the property given as input parameter).
Object[]	getUpperEnumeration() Each type expression can contain multiple objects; this method returns this set of objects.
protected Object	matchesNonRestriction(TypeExpression subtype, HashMap context, int ttl, List<MatchLogEntry> log) Check all cases where the subtype is not a subclass of PropertyRestriction().
protected void	setOnProperty(String propURI) Set the property for which this restriction is defined.
boolean	setProperty(String propURI, Object value) Adds a statement with this resource as the subject, the given propURI as the predicate and the given value as the object.

Methods inherited from class org.universAAL.middleware.owl.TypeExpression

checkTTL, collectTypesMinimized, copy, getDefaultMatchmakingTTL, hasMember, hasMember, hasMember, isDisjointWith, isDisjointWith, isDisjointWith, isWellFormed, matches, matches, matches, synchronize

Methods inherited from class org.universAAL.middleware.rdf.Resource

addMultiLangProp, addType, asList, asList, asRDFList, changeProperty, copy, deepCopy, equals, generateAnonURI, getDefaultLang, getFilename, getLocalName, getMultiLangProp, getNamespace, getOrConstructLabel, getOrConstructLabel, getProperty, getPropertyURIs, getPropSerializationType, getResource, getResourceComment, getResourceLabel, getResourceLabel, getStaticFieldValue, getType, getTypes, getURI, hashCode, hasProperty, hasQualifiedName, isAnon, isAnon, isBlockingAddingTypes, isClosedCollection, isQualifiedName, literal, numberOfProperties, representsQualifiedURI, serializesAsXMLLiteral, setPropertyPath, setPropertyPath, setPropertyPathFromOffset, setResourceComment, setResourceLabel, toString, toStringRecursive, toStringRecursive, unliteral

Methods inherited from class java.lang.Object

clone, finalize, getClass, notify, notifyAll, wait, wait, wait

Field Detail

MY_URI

public static final String MY_URI

URI for owl:Restriction.

See Also:

Constant Field Values

PROP_OWL_ON_PROPERTY

public static final String PROP_OWL_ON_PROPERTY

URI for owl:onProperty.

See Also:

Constant Field Values

propMap

protected static final Set<String> propMap

Set of all property URIs that are used in the different property restrictions. This can be used in setProperty(String, Object) method to avoid setting two or more of those properties because they should uniquely identify the type of the restriction.

Method Detail

getClassURI

public String getClassURI()

Get the class URI for this PropertyRestriction.

Returns:

The class URI.

getConstraint

public Object getConstraint()

Get the constraint of all value restrictions (HasValueRestriction , SomeValuesFromRestriction, or AllValuesFromRestriction, but none of the cardinality restrictions). Subclasses should override this method if they have a constraint.

Returns:

the constraint of this restriction.

setOnProperty

protected void setOnProperty(String propURI)

Set the property for which this restriction is defined.

Parameters:

propURI - URI of the property.

getOnProperty

public String getOnProperty()

Get the property for which this restriction is defined.

Returns:

URI of the property.

copyTo

protected TypeExpression copyTo(PropertyRestriction copy)

Helper method to copy Restrictions.

Parameters:

copy - An instance of the class to which to copy all properties.

Returns:

the copy with all properties from this object.

See Also:

TypeExpression.copy()

getNamedSuperclasses

public String[] getNamedSuperclasses()

Description copied from class: TypeExpression

Get the set of class URIs for all super classes of the individuals of this class expression.

Specified by:

getNamedSuperclasses in class TypeExpression

getUpperEnumeration

public Object[] getUpperEnumeration()

Description copied from class: TypeExpression

Each type expression can contain multiple objects; this method returns this set of objects.

Specified by:

getUpperEnumeration in class TypeExpression

matchesNonRestriction

protected Object matchesNonRestriction(TypeExpression subtype,
                                       HashMap context,
                                       int ttl,
                                       List<MatchLogEntry> log)

Check all cases where the subtype is not a subclass of PropertyRestriction(). Helper method for TypeExpression.matches(TypeExpression, HashMap, int, List) in subclasses.

setProperty

public boolean setProperty(String propURI,
                           Object value)

Description copied from class: Resource

Adds a statement with this resource as the subject, the given propURI as the predicate and the given value as the object. Subclasses must override this in order to decide if the statement to be added fits the general class constraints. If not, the call of this method should be ignored. For each property only one single call may be made to this method, unless subsequent calls to this method for setting the value of the same property are treated as an update for an update-able property. Multi-valued properties must be set using an instance of List. The differentiation, if a such list should be treated as an rdf:List, can be made with the help of Resource.isClosedCollection(String). The default implementation here accepts all property-value pairs blindly except for rdf:type which is handled if the value is a type URI, a Resource or a java.util.List of them.

Note: The setting of the property rdf:type is being handled by this class via the final methods Resource.addType(String, boolean), Resource.getType(), and Resource.getTypes(). Although these methods give the view of handling type URIs as strings, but in reality the types are stored as direct instances of this class. So, the subclasses should ignore calls for setting rdf:type; if not, then the subclass must pay attention that the value should be a List of direct instances of this class so that (1) the Resource.toString() method returns just the URI and (2) the serializers get no problems with the value. Also, settings via subclasses may be overwritten by this class if a subsequent call to Resource.addType(String, boolean) is made.

Overrides:

setProperty in class Resource

Returns:

true if the property changed as a result of the call

addToList

public boolean addToList(ArrayList a)

Add this restriction to the given set of restrictions.

Parameters:

a - The set of Restrictions.

Returns:

True, if the restriction was added.

getRestriction

public static PropertyRestriction getRestriction(ArrayList a,
                                                 String restrictionURI)

Get a restriction with the given class URI from the given set of restrictions. The class URI of a specific restriction can be retrieved using either Restriction.MY_URI or #getClassURI().

Parameters:

a - The set of Restrictions.

restrictionURI - The URI of the Restriction class to search for.

Returns:

The restriction, or null, if no restriction of the given type could be found in the given set.

getRestrictionOnProperty

public AllValuesFromRestriction getRestrictionOnProperty(String propURI)

This method is specifically defined for working with property paths, hence whenever it is called it means that the path is already processed until the 'onProperty' of this Restriction and now we are interested in the restrictions defined for the next property in the path (the property given as input parameter). Hence, the class set for 'allValuesFrom' must be checked.
