org.universAAL.lddi.zwave.exporter.Server

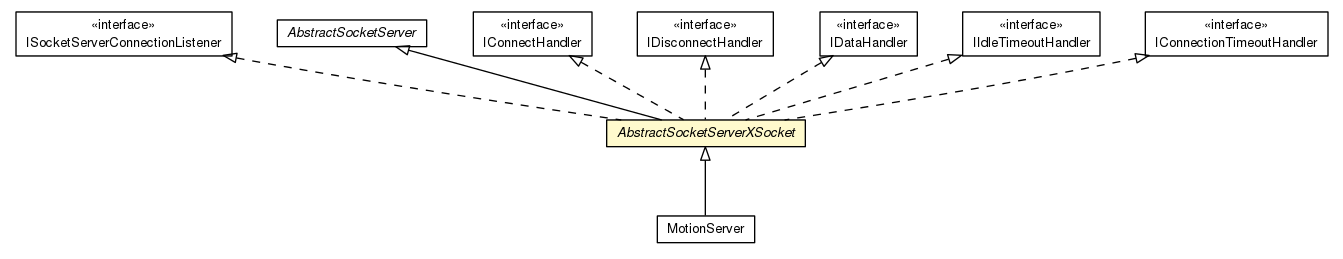

Class AbstractSocketServerXSocket

java.lang.Object

org.universAAL.lddi.zwave.exporter.Server.AbstractSocketServer

org.universAAL.lddi.zwave.exporter.Server.AbstractSocketServerXSocket

All Implemented Interfaces:

Closeable, AutoCloseable, ISocketServer, ISocketServerConnectionListener, org.xsocket.connection.IConnectHandler, org.xsocket.connection.IConnectionTimeoutHandler, org.xsocket.connection.IDataHandler, org.xsocket.connection.IDisconnectHandler, org.xsocket.connection.IHandler, org.xsocket.connection.IIdleTimeoutHandler

Direct Known Subclasses:

MotionServer

public abstract class AbstractSocketServerXSocket
extends AbstractSocketServer
implements org.xsocket.connection.IConnectHandler, org.xsocket.connection.IDisconnectHandler, org.xsocket.connection.IDataHandler, org.xsocket.connection.IIdleTimeoutHandler, org.xsocket.connection.IConnectionTimeoutHandler, ISocketServerConnectionListener

Socket server implemented using xSocket library.

Version:

$Rev: 4442 $ $Date: 2011-11-23 16:22:03 +0100 (mié, 23 nov 2011) $

Author:

fraperod

Field Summary

Fields

Modifier and Type	Field and Description
protected static boolean	activateConnectionLogging True to allow xSocket connection to log.
protected org.xsocket.connection.IServer	srv xSocket server.
protected TransferRateCalculator	transferRate Calculates transfer rates.

Fields inherited from class org.universAAL.lddi.zwave.exporter.Server.AbstractSocketServer

DEFAULT_TCP_BUFFERS_SIZE, listenPort, nWorkersCPUmultiplier, nWorkersIO, protocolDecoderFactory, tcpBufferSizeIn, tcpBufferSizeOut, workerPool

Fields inherited from interface org.xsocket.connection.IHandler

DEFAULT_EXECUTION_MODE

Constructor Summary

Constructors

Constructor and Description
AbstractSocketServerXSocket(ISocketServerProtocolDecoderFactory protocolFactory, int listenPort) Constructor.
AbstractSocketServerXSocket(ISocketServerProtocolDecoderFactory protocolFactory, int listenPort, SSLContext sslContext, int idleTimeout, int connectionTimeout) Constructor.

Method Summary

Modifier and Type	Method and Description
void	close() Closes the server.
org.xsocket.connection.IServer	getServerXSocket() Returns the xSocket server class.
long	getTotalReadBytes() Returns the total number of bytes read.
long	getTotalSentBytes() Retuns the total number of bytes sent.
float	getTransferRateIn() Incoming data transfer rate in bytes/second.
float	getTransferRateOut() Outgoing data transfer rate in bytes/second.
boolean	onConnect(org.xsocket.connection.INonBlockingConnection connection) Socket connected.
boolean	onConnectionTimeout(org.xsocket.connection.INonBlockingConnection connection) Method called when a connection timeout is reached.
boolean	onData(org.xsocket.connection.INonBlockingConnection connection) New data available on xSocket connection.
boolean	onDisconnect(org.xsocket.connection.INonBlockingConnection connection) Disconnect event.
boolean	onIdleTimeout(org.xsocket.connection.INonBlockingConnection connection) Idle time out event.
void	packetSent(ISocketServerConnection connection, int size) Data sent notification.
void	run() Stars the server in the current thread.
static void	setActivateConnectionLogging(boolean activateConnectionLogging) Sets the xSocket connection log.
void	setIP(String ip) Sets the IP to bind the port.
void	start() Starts the server in a different thread.

Methods inherited from class org.universAAL.lddi.zwave.exporter.Server.AbstractSocketServer

setPort

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.universAAL.lddi.zwave.exporter.Server.ISocketServerConnectionListener

packetArrived, socketConnected, socketDisconnected, socketException

Field Detail

transferRate

protected TransferRateCalculator transferRate

Calculates transfer rates.

activateConnectionLogging

protected static boolean activateConnectionLogging

True to allow xSocket connection to log.

srv

protected org.xsocket.connection.IServer srv

xSocket server.

Constructor Detail

AbstractSocketServerXSocket

public AbstractSocketServerXSocket(ISocketServerProtocolDecoderFactory protocolFactory,
                                   int listenPort)

Constructor. No Idle timeout, nor connection timeout used.

Parameters:

protocolFactory - protocol decoder factory to be used by the server

listenPort - port to be used by the server to accept incoming connections

AbstractSocketServerXSocket

public AbstractSocketServerXSocket(ISocketServerProtocolDecoderFactory protocolFactory,
                                   int listenPort,
                                   SSLContext sslContext,
                                   int idleTimeout,
                                   int connectionTimeout)

Constructor.

Parameters:

protocolFactory - protocol decoder factory to be used by the server.

listenPort - port to be used by the server to accept incoming connections.

sslContext - SSLContext.

idleTimeout - milliseconds to receive some data, connection will be closed if no data is received. 0 to disable timeout.

connectionTimeout - milliseconds to close the connection after being established. 0 to disable timeout.

Method Detail

setActivateConnectionLogging

public static void setActivateConnectionLogging(boolean activateConnectionLogging)

Sets the xSocket connection log.

Parameters:

activateConnectionLogging - true to allow xSocket connection to log

close

public void close()
           throws IOException

Closes the server.

Specified by:

close in interface Closeable

Specified by:

close in interface AutoCloseable

Specified by:

close in interface ISocketServer

Throws:

IOException - error closing the socket server.

getServerXSocket

public org.xsocket.connection.IServer getServerXSocket()

Returns the xSocket server class.

Returns:

the xSocket server class

getTotalReadBytes

public long getTotalReadBytes()

Returns the total number of bytes read.

Specified by:

getTotalReadBytes in interface ISocketServer

Returns:

the total number of bytes read

getTotalSentBytes

public long getTotalSentBytes()

Retuns the total number of bytes sent.

Specified by:

getTotalSentBytes in interface ISocketServer

Returns:

the total number of bytes sent

getTransferRateIn

public float getTransferRateIn()

Incoming data transfer rate in bytes/second.

Specified by:

getTransferRateIn in interface ISocketServer

Returns:

the incoming data transfer rate in bytes/second

getTransferRateOut

public float getTransferRateOut()

Outgoing data transfer rate in bytes/second.

Specified by:

getTransferRateOut in interface ISocketServer

Returns:

the Outgoing data transfer rate in bytes/second

onConnect

public boolean onConnect(org.xsocket.connection.INonBlockingConnection connection)
                  throws IOException

Socket connected.

Specified by:

onConnect in interface org.xsocket.connection.IConnectHandler

Parameters:

connection - new xSocket connection opened

Returns:

true if the event was handled

Throws:

IOException - error handling new connection

onConnectionTimeout

public boolean onConnectionTimeout(org.xsocket.connection.INonBlockingConnection connection)
                            throws IOException

Method called when a connection timeout is reached.

Specified by:

onConnectionTimeout in interface org.xsocket.connection.IConnectionTimeoutHandler

Parameters:

connection - the connection

Returns:

true if the event was handled

Throws:

IOException - error handling connection timeout

onData

public boolean onData(org.xsocket.connection.INonBlockingConnection connection)
               throws IOException

New data available on xSocket connection.

Specified by:

onData in interface org.xsocket.connection.IDataHandler

Parameters:

connection - the connection

Returns:

true if the event was handled

Throws:

IOException - error while processing incoming data.

onDisconnect

public boolean onDisconnect(org.xsocket.connection.INonBlockingConnection connection)
                     throws IOException

Disconnect event.

Specified by:

onDisconnect in interface org.xsocket.connection.IDisconnectHandler

Parameters:

connection - the disconnected connection

Returns:

true if the event was handled

Throws:

IOException - error handling disconnect event

onIdleTimeout

public boolean onIdleTimeout(org.xsocket.connection.INonBlockingConnection connection)
                      throws IOException

Idle time out event.

Specified by:

onIdleTimeout in interface org.xsocket.connection.IIdleTimeoutHandler

Parameters:

connection - the idle connection

Returns:

true if the event has handled

Throws:

IOException - error handling idle timeout

packetSent

public void packetSent(ISocketServerConnection connection,
                       int size)

Data sent notification.

Specified by:

packetSent in interface ISocketServerConnectionListener

Parameters:

connection - connection

size - the size of the data sent

run

public void run()
         throws IOException

Stars the server in the current thread.

Specified by:

run in interface ISocketServer

Throws:

IOException - error starting the server

See Also:

es.tsbsoluciones.socketServer.ISocketServer#run()

setIP

public void setIP(String ip)

Sets the IP to bind the port.

Specified by:

setIP in interface ISocketServer

Parameters:

ip - the IP to be used to bind the port

start

public void start()
           throws IOException

Starts the server in a different thread.

Specified by:

start in interface ISocketServer

Throws:

IOException - error starting the server
