org.universAAL.lddi.lib.ieeex73std.x73.p104zz

Class DeviceSpecialization

java.lang.Object

org.universAAL.lddi.lib.ieeex73std.x73.p20601.dim.DIM

org.universAAL.lddi.lib.ieeex73std.x73.p20601.dim.MDS

org.universAAL.lddi.lib.ieeex73std.x73.p104zz.DeviceSpecialization

All Implemented Interfaces:

GET_Service, MDS_Events

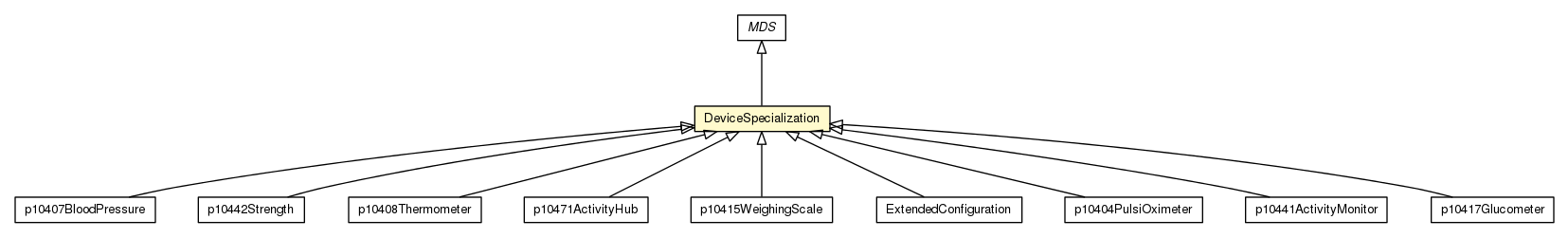

Direct Known Subclasses:

ExtendedConfiguration, p10404PulsiOximeter, p10407BloodPressure, p10408Thermometer, p10415WeighingScale, p10417Glucometer, p10441ActivityMonitor, p10442Strength, p10471ActivityHub

public class DeviceSpecialization
extends MDS

This class is used for managing the information received from the Agent.

Field Summary

Fields inherited from class org.universAAL.lddi.lib.ieeex73std.x73.p20601.dim.DIM

objects

Constructor Summary

Constructors

Constructor and Description
DeviceSpecialization(IDecoder decoder) Analyze a configuration report from the Agent.

Method Summary

Modifier and Type	Method and Description
void	GET() The manager may request the MDS object attributes of the agent in which case the manager shall send the Remote Operation Invoke | Get command (see roiv-cmip-get in A.10.2) with the reserved handle value of 0.
void	getTimeGapofDevice(GetResultSimple rors_cmip_get)
ConfigReportRsp	MDS_Configuration_Event(ConfigReport cfgreport) This event is sent by the agent during the configuring state of startup if the manager does not already know the agent's configuration from past associations.
void	MDS_Data_Request()
void	MDS_Dynamic_Data_Update_Fixed(ScanReportInfoFixed scanreportinfofixed) Processing of a fixed measurement
void	MDS_Dynamic_Data_Update_MP_Fixed(ScanReportInfoMPFixed scanreportinfompfixed) This is the same as MDS-Dynamic-Data-Update-Fixed, but allows inclusion of data from multiple persons.
void	MDS_Dynamic_Data_Update_MP_Var(ScanReportInfoMPVar scanreportinfompvar) This is the same as MDS-Dynamic-Data-Update-Var, but allows inclusion of data from multiple persons.
void	MDS_Dynamic_Data_Update_Var(ScanReportInfoVar scanreportinfovar) Processing of a variable measurement received.
void	Set_Time()

Methods inherited from class org.universAAL.lddi.lib.ieeex73std.x73.p20601.dim.MDS

getNomenclatureCode

Methods inherited from class org.universAAL.lddi.lib.ieeex73std.x73.p20601.dim.DIM

addObjecttoDim, getObjectfromDim

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

DeviceSpecialization

public DeviceSpecialization(IDecoder decoder)

Analyze a configuration report from the Agent. With it, it describes the objects is using (measurement types)

Parameters:

cfgreport - the configuration report from the agent

Method Detail

MDS_Configuration_Event

public ConfigReportRsp MDS_Configuration_Event(ConfigReport cfgreport)

Description copied from interface: MDS_Events

This event is sent by the agent during the configuring state of startup if the manager does not already know the agent's configuration from past associations. The event provides static information about the supported measurement capabilities of the agent.

MDS_Dynamic_Data_Update_Var

public void MDS_Dynamic_Data_Update_Var(ScanReportInfoVar scanreportinfovar)

Processing of a variable measurement received.

MDS_Dynamic_Data_Update_Fixed

public void MDS_Dynamic_Data_Update_Fixed(ScanReportInfoFixed scanreportinfofixed)
                                   throws Exception

Processing of a fixed measurement

Throws:

Exception

MDS_Dynamic_Data_Update_MP_Var

public void MDS_Dynamic_Data_Update_MP_Var(ScanReportInfoMPVar scanreportinfompvar)

Description copied from interface: MDS_Events

This is the same as MDS-Dynamic-Data-Update-Var, but allows inclusion of data from multiple persons.

MDS_Dynamic_Data_Update_MP_Fixed

public void MDS_Dynamic_Data_Update_MP_Fixed(ScanReportInfoMPFixed scanreportinfompfixed)

Description copied from interface: MDS_Events

This is the same as MDS-Dynamic-Data-Update-Fixed, but allows inclusion of data from multiple persons.

GET

public void GET()

Description copied from interface: GET_Service

The manager may request the MDS object attributes of the agent in which case the manager shall send the Remote Operation Invoke | Get command (see roiv-cmip-get in A.10.2) with the reserved handle value of 0. The agent shall respond by reporting its MDS object attributes to the manager using the Remote Operation Response | Get response (see rors-cmip-get in A.10.2). In the response to a Get MDS Object command, only attributes implemented by the agent are returned.

MDS_Data_Request

public void MDS_Data_Request()

Specified by:

MDS_Data_Request in class MDS

Set_Time

public void Set_Time()

Specified by:

Set_Time in class MDS

getTimeGapofDevice

public void getTimeGapofDevice(GetResultSimple rors_cmip_get)
