org.universAAL.lddi.knx.driver

Class KnxDpt1Instance

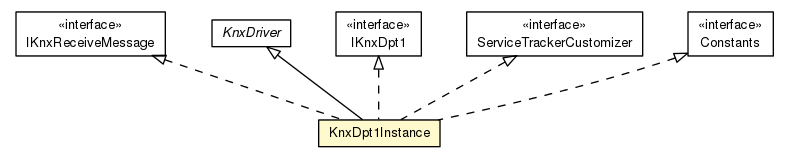

java.lang.Object

org.universAAL.lddi.knx.interfaces.KnxDriver

org.universAAL.lddi.knx.driver.KnxDpt1Instance

All Implemented Interfaces:

org.osgi.service.device.Constants, org.osgi.util.tracker.ServiceTrackerCustomizer, IKnxDpt1, IKnxReceiveMessage

public class KnxDpt1Instance
extends KnxDriver
implements IKnxDpt1, IKnxReceiveMessage, org.osgi.util.tracker.ServiceTrackerCustomizer, org.osgi.service.device.Constants

Working instance of the IKnxDpt1 driver. Registers a service/device in OSGi registry. Tracks on the KNX groupDevice service passed in the attach method in KnxDpt1Driver class. This instance is passed to the consuming client (e.g. universAAL exporter bundle). When the KNX groupDevice service disappears, this driver is removed from the consuming client and from the groupDevice. This driver handles knx 1-bit events (knx datapoint 1), which is on/off.

Author:

Thomas Fuxreiter (foex@gmx.at)

Field Summary

Fields inherited from class org.universAAL.lddi.knx.interfaces.KnxDriver

client, groupDevice

Fields inherited from interface org.universAAL.lddi.knx.groupdevicecategory.IKnxDpt1

CLASS, DEFAULT_VALUE_OFF, DEFAULT_VALUE_ON, MANUFACTURER, MATCH_CLASS, MATCH_MAKE, MATCH_MODEL, MATCH_SERIAL, MATCH_VERSION, MODEL, MY_DEVICE_CATEGORY, REVISION, SERIAL

Fields inherited from interface org.osgi.service.device.Constants

DEVICE_CATEGORY, DEVICE_DESCRIPTION, DEVICE_SERIAL, DRIVER_ID

Constructor Summary

Constructors

Constructor and Description
KnxDpt1Instance(KnxDpt1Driver parent_)

Method Summary

Modifier and Type	Method and Description
Object	addingService(org.osgi.framework.ServiceReference reference) track on my groupDevice
void	modifiedService(org.osgi.framework.ServiceReference reference, Object service)
void	newMessageFromKnxBus(byte[] event) Calculate readable measurement value (boolean) from given byte array according to KNX DPT 1.
void	removedService(org.osgi.framework.ServiceReference reference, Object service)
void	sendMessageToKnxBus(boolean event) Transfer boolean event to KNX byte array (payload).

Methods inherited from class org.universAAL.lddi.knx.interfaces.KnxDriver

attachDriver, clearHexValue, detachDriver, removeDriver, setgroupDevice

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

KnxDpt1Instance

public KnxDpt1Instance(KnxDpt1Driver parent_)

Parameters:

c - OSGi BundleContext

sr - Service reference of KNX groupDevice

client - Link to consumer of this driver (e.g. universAAL exporter bundle)

Method Detail

addingService

public Object addingService(org.osgi.framework.ServiceReference reference)

track on my groupDevice

Specified by:

addingService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

Parameters:

IKnxDpt1 - groupDevice service

Returns:

The service object to be tracked for the ServiceReference object or null if the ServiceReference object should not be tracked.

modifiedService

public void modifiedService(org.osgi.framework.ServiceReference reference,
                            Object service)

Specified by:

modifiedService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

removedService

public void removedService(org.osgi.framework.ServiceReference reference,
                           Object service)

Specified by:

removedService in interface org.osgi.util.tracker.ServiceTrackerCustomizer

newMessageFromKnxBus

public void newMessageFromKnxBus(byte[] event)

Calculate readable measurement value (boolean) from given byte array according to KNX DPT 1. Call client.

Specified by:

newMessageFromKnxBus in interface IKnxReceiveMessage

Parameters:

event - the status/event byte of the knx telegram

See Also:

IKnxReceiveMessage.newMessageFromKnxBus(byte[])

sendMessageToKnxBus

public void sendMessageToKnxBus(boolean event)

Transfer boolean event to KNX byte array (payload). Call driver.
