org.universAAL.lddi.fs20.devicemodel

Class FS20Device

java.lang.Object

org.universAAL.lddi.fs20.devicemodel.FS20Device

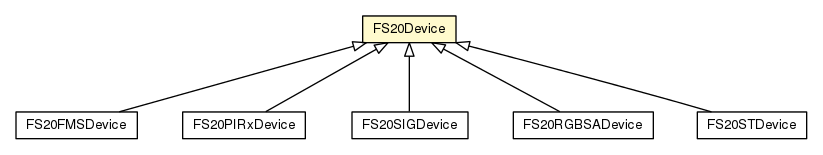

Direct Known Subclasses:

FS20FMSDevice, FS20PIRxDevice, FS20RGBSADevice, FS20SIGDevice, FS20STDevice

public class FS20Device
extends Object

One FS20 Device with all additional properties. This device is registered in OSGi framework

Author:

Steeven Zeiss Fraunhofer IGD (steeven.zeiss@igd.fraunhofer.de)

Field Summary

Fields

Modifier and Type	Field and Description
protected org.osgi.service.log.LogService	logger

Constructor Summary

Constructors

Constructor and Description
FS20Device() empty constructor for factory

Method Summary

Modifier and Type	Method and Description
String	getDeviceCode() Get the DeviceCode
String	getDeviceDescription() Get the device description
String	getDeviceLocation() Get the device location
String	getDeviceName() Get the device name
FS20DeviceTypes	getDeviceType() Get the device type
String	getDeviceURI() Get the device URI
String	getFunctionDescription() Get the function description
String	getHouseCode() Get the HouseCode
protected void	setConnection(FHZ1000PC connection)
void	setParams(FS20DeviceProperties fs20DeviceProps) Fill empty device with parameters and set it alive
void	setParams(FS20DeviceProperties fs20DeviceProps, org.osgi.service.log.LogService logger) Fill empty device with parameters and set it alive
protected void	write(String houseCode, String deviceCode, Byte button) Sends a FS20 command to the FS20 bus

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

logger

protected org.osgi.service.log.LogService logger

Constructor Detail

FS20Device

public FS20Device()

empty constructor for factory

Method Detail

setConnection

protected void setConnection(FHZ1000PC connection)

setParams

public void setParams(FS20DeviceProperties fs20DeviceProps,
                      org.osgi.service.log.LogService logger)

Fill empty device with parameters and set it alive

Parameters:

fs20DeviceProps - = contains all relevant properties

network - = the conntected FS20 network

logger - = logging service

setParams

public void setParams(FS20DeviceProperties fs20DeviceProps)

Fill empty device with parameters and set it alive

Parameters:

fs20DeviceProps - = contains all relevant properties

network - = the conntected FS20 network

logger - = logging service

getDeviceLocation

public String getDeviceLocation()

Get the device location

Returns:

returns the device location

getDeviceURI

public String getDeviceURI()

Get the device URI

Returns:

returns the device URI

getDeviceName

public String getDeviceName()

Get the device name

Returns:

returns the device name

getHouseCode

public String getHouseCode()

Get the HouseCode

Returns:

returns the houseCode

getDeviceCode

public String getDeviceCode()

Get the DeviceCode

Returns:

returns the deviceCode

getDeviceDescription

public String getDeviceDescription()

Get the device description

Returns:

returns the device description

getFunctionDescription

public String getFunctionDescription()

Get the function description

Returns:

returns the function description

getDeviceType

public FS20DeviceTypes getDeviceType()

Get the device type

Returns:

returns the device type

write

protected void write(String houseCode,
                     String deviceCode,
                     Byte button)
              throws IOException

Sends a FS20 command to the FS20 bus

Parameters:

houseCode - = the houseCode of the device

deviceCode - = the deviceCode of the device

button - = the control function

Throws:

IOException - = exception if something went wrong with the communication
